9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
10.35

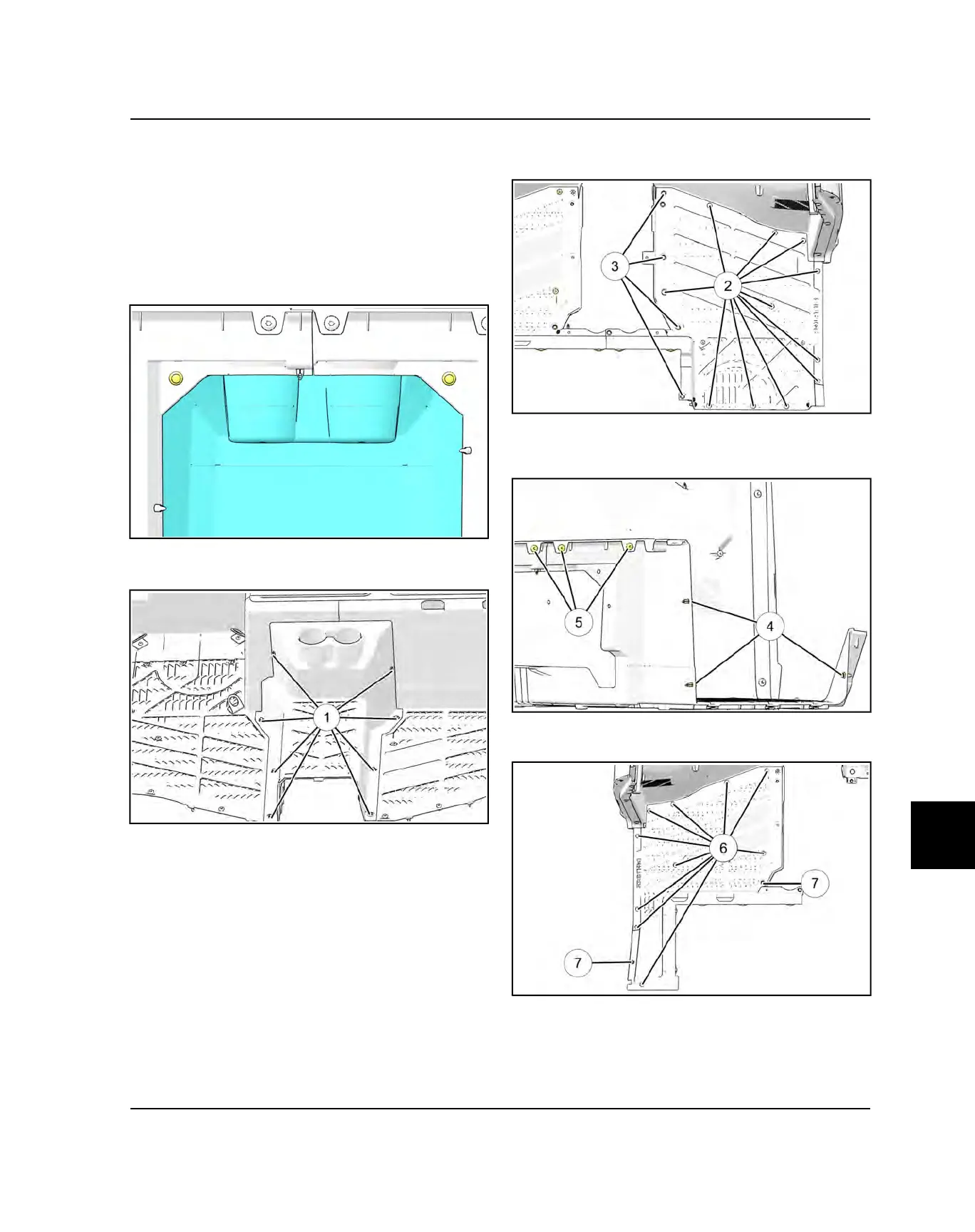

FLOOR REMOVAL / INSTALLATION
FLOOR REMOVAL
1. Remove both rocker panels. SeeRocker Panel
Removal, page 10.34.
2. Remove driver’s seat.
3. Remove battery cover.
4. Remove both push rivets retaining the back of the
floor tunnel.
5. Remove the push rivets
q
retaining the center
console, and remove the cover from the vehicle.
6. Remove the T-40 torx fasteners
w
and the push
rivets
e
retaining the passenger floor.
7. Remove the push rivets
r
and the T-40 torx
fasteners
t
. Lift and remove the passenger floor
from the vehicle.
8. Remove the T-40 torx fasteners
y
and the push
rivets
u
.
BODY / FRAME
