9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
ALL WHEEL DRIVE COIL SERVICE
OPERATION OVERVIEW
• When the AWD switch is “ON”, 12 VDC power is
present at the hub coil.
• When the AWD switch is “ON”, and if the criteria is
met, the Engine Controller provides a ground path
(brown/white wire). When this occurs the AWD icon
should display in the instrument cluster.
• The AWD system must be grounded to operate.
DIAGNOSING SYSTEM FAILURES

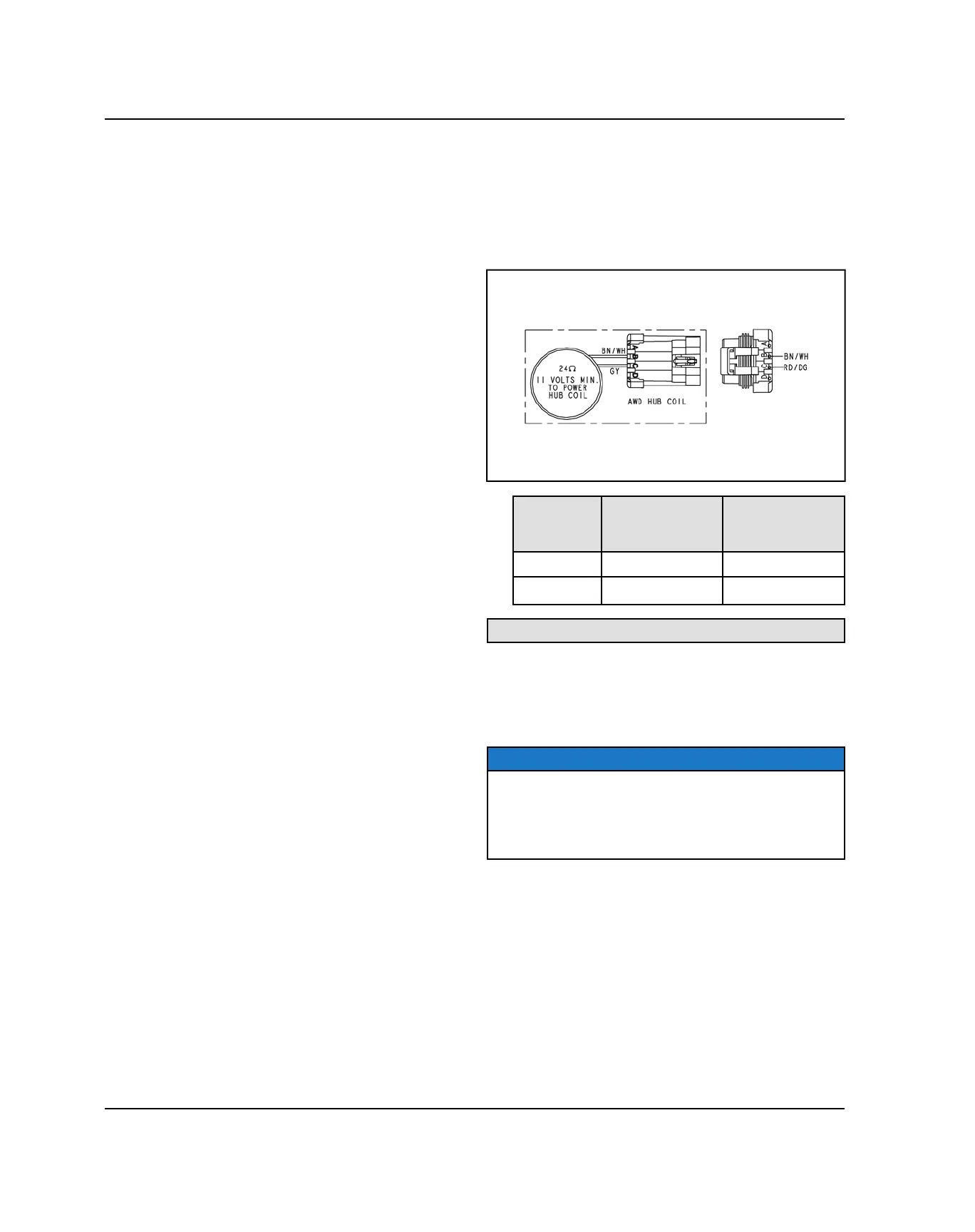

1. Verify AWD switch is functional and that a minimum
of 11 volts is present at the hub coil.
2. Verify AWD hub coil is functional. Test the AWD hub
coil using an ohm meter. See specifications below:
TEST
CONNECT
METER LEADS
TO:
OHMS
READING
AWD Coil GY to BN/WH ~ 23 Ω
AWD Coil GY to Ground
Open Line (OL)
AWD Hub Coil Resistance:23 Ω ± 5%
3. Verify the wiring harness, wiring, connectors,
connector pins and grounds are undamaged, clean
and connected properly.
4. Verify continuity of wire connections with a volt/ohm
meter.
NOTE
Verify all wires and wiring connections have been
tested properly with a known good volt/ohm meter
before suspecting a component failure. 80% of all
electrical issues are caused by bad/failed connections
and grounds.
ELECTRICAL
