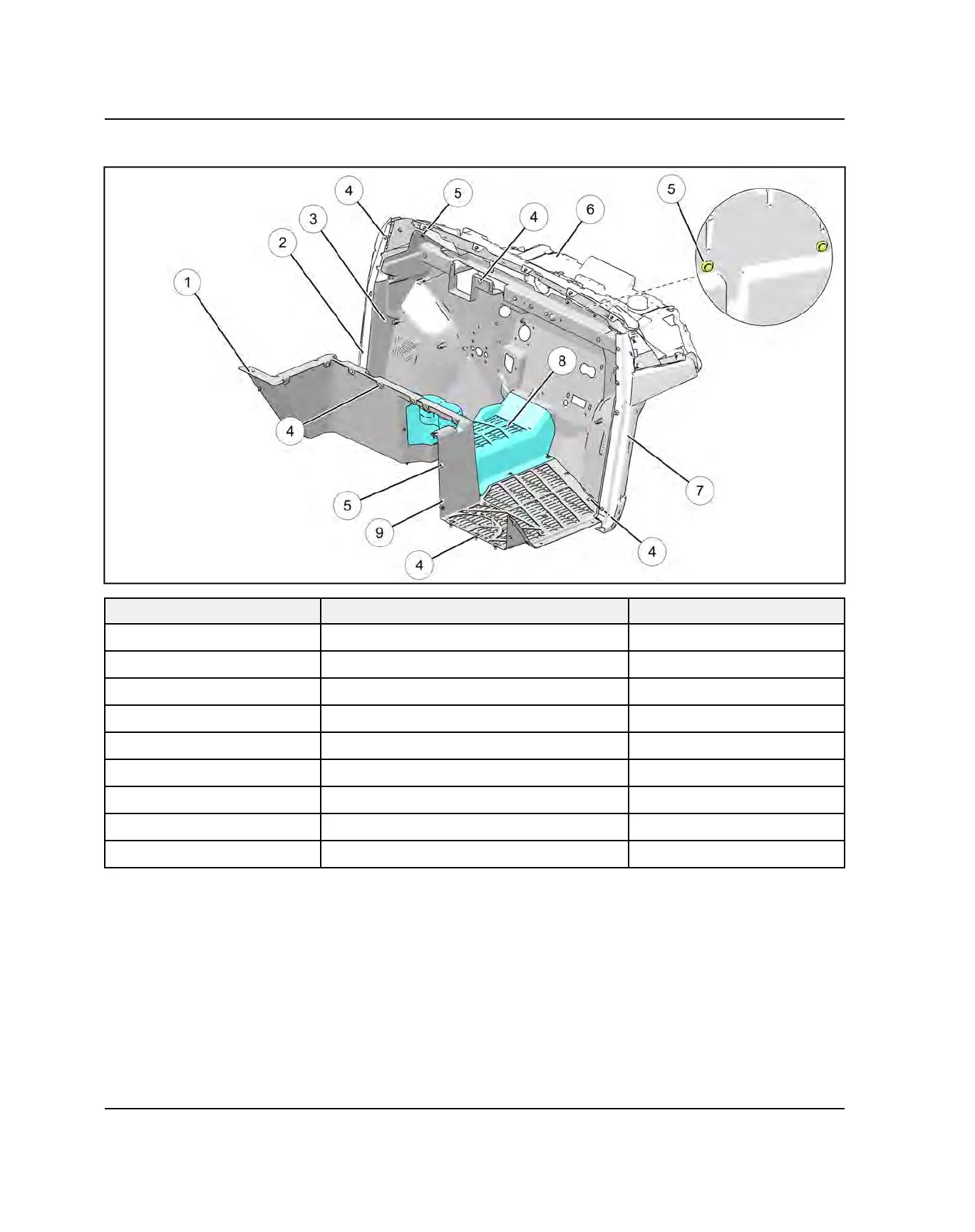

FLOORS / FENDER ASSEMBLY VIEW
REF
DESCRIPTION TORQUE
q
DRIVER FLOOR
NA
w
LH FENDER FLARE NA
e
FLOOR, UPPER CLOSEOFF
NA
r
FLOOR FASTENER 42 in-lbs (5 Nm)
t
PUSH RIVET
NA
y
LINDER, UNDER HOOD
NA
u
RH FENDER FLARE NA
i
COVER, TUNNEL-FLOOR
NA
o
PASSENGER FLOOR
NA
BODY / FRAME
