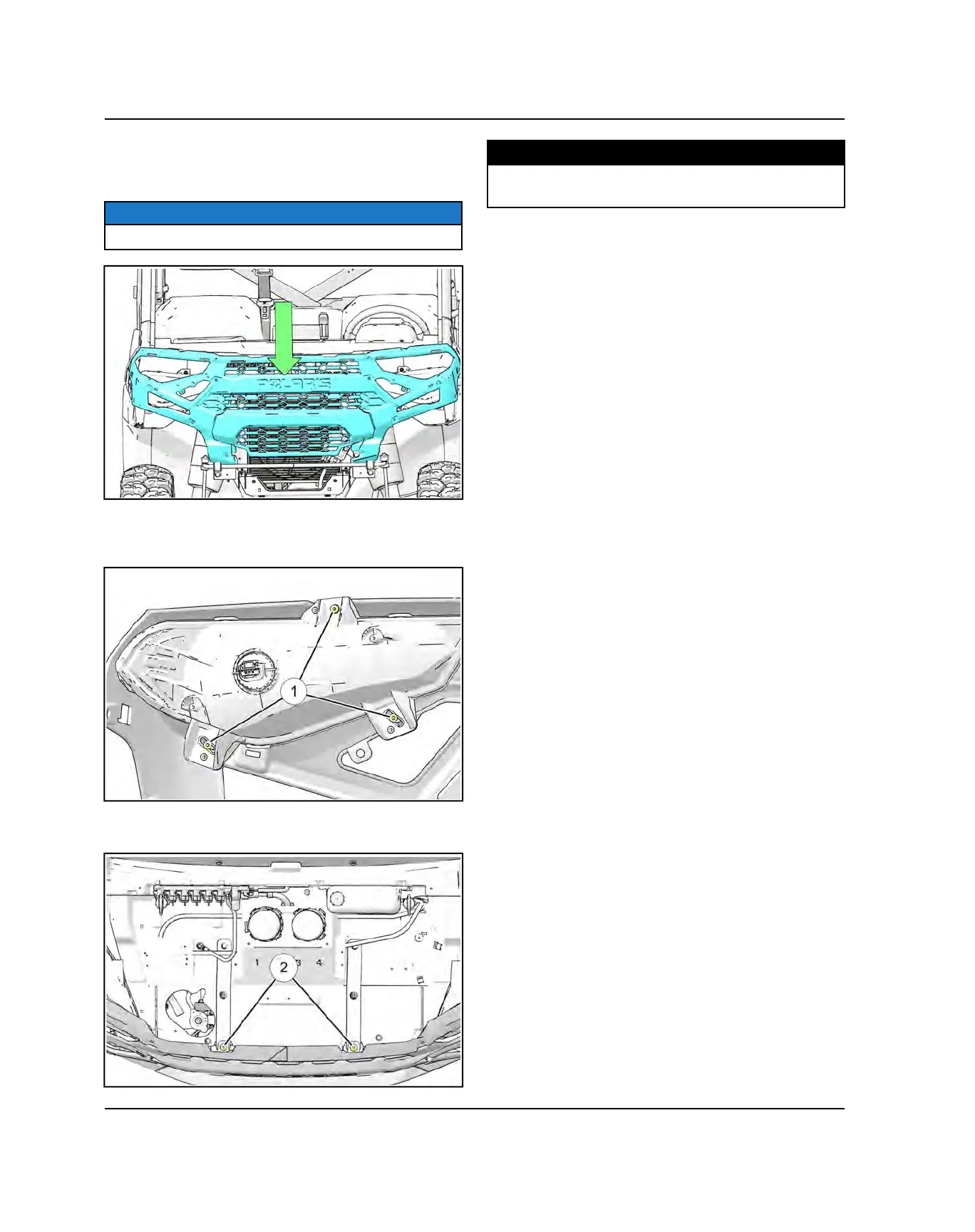

FRONT FASCIA INSTALLATION
1. Install the front fascia straight down and align with
fastener holes.
NOTE
Front Bumper removed for clarity.
2. Reinstall the headlight assembly. Install the three T-
25 torx fasteners
q
. Do not tighten. Connect the
headlight connector.
3. Install the two T-40 torx fasteners
w
. Torque to
specification.
TORQUE
Body Fasteners
42 in-lbs (5 Nm)
