BALL JOINT REMOVAL

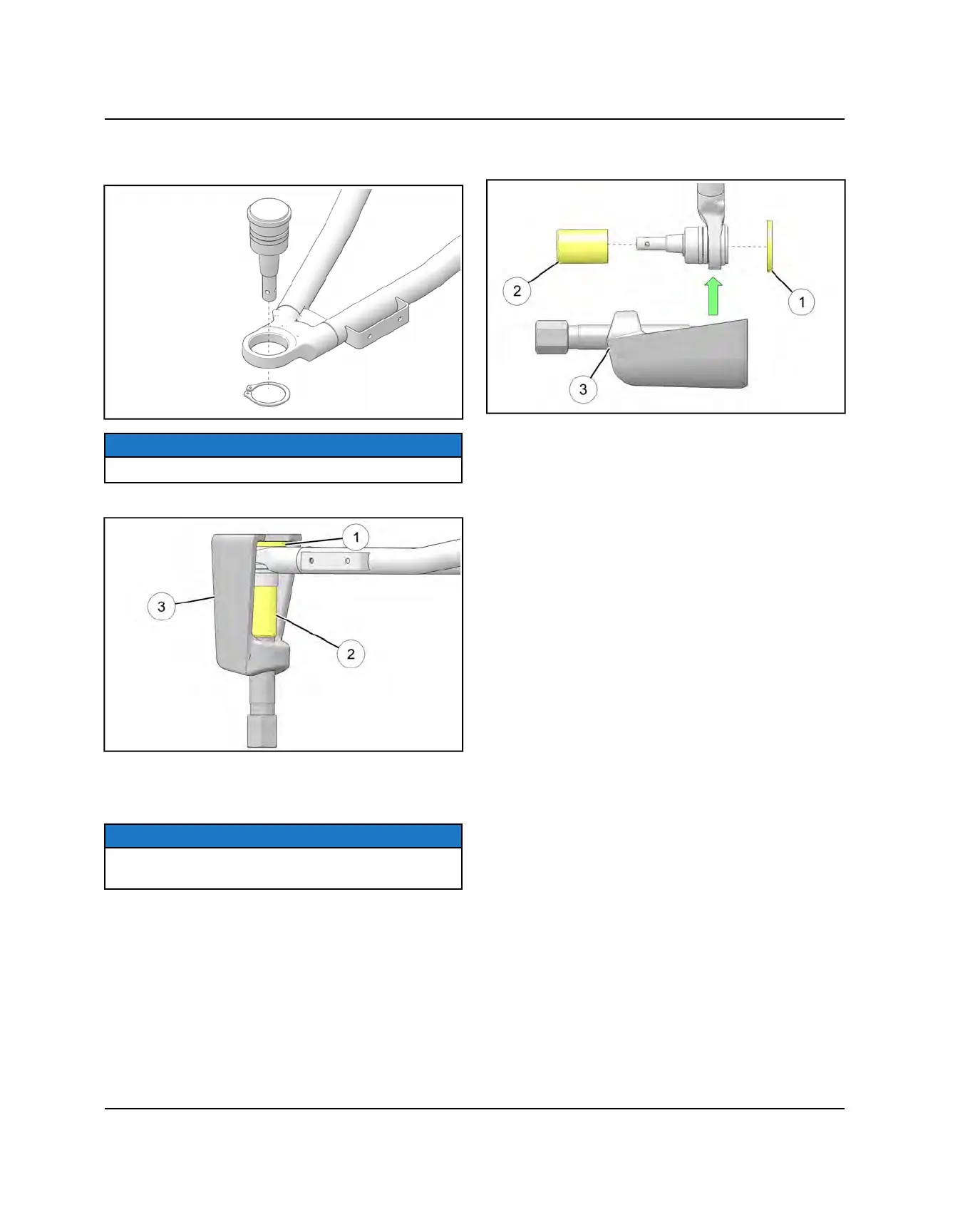

1. Remove the retaining ring from the ball joint.
NOTE
Image for reference only.
2. Install Spacer
q
over the top of the ball joint face.
3. Place Removal Adaptor
w
over the ball joint shaft.
4. Install the Press Asm.
e
onto the A-arm to engage
the ball joint Removal Adapter.
NOTE
Be sure the Press Asm. opening is only contacting the
Spacer
q
and not the ball joint face.
5. Tighten the Press Asm. screw and fully remove the
ball joint from the A-arm.
