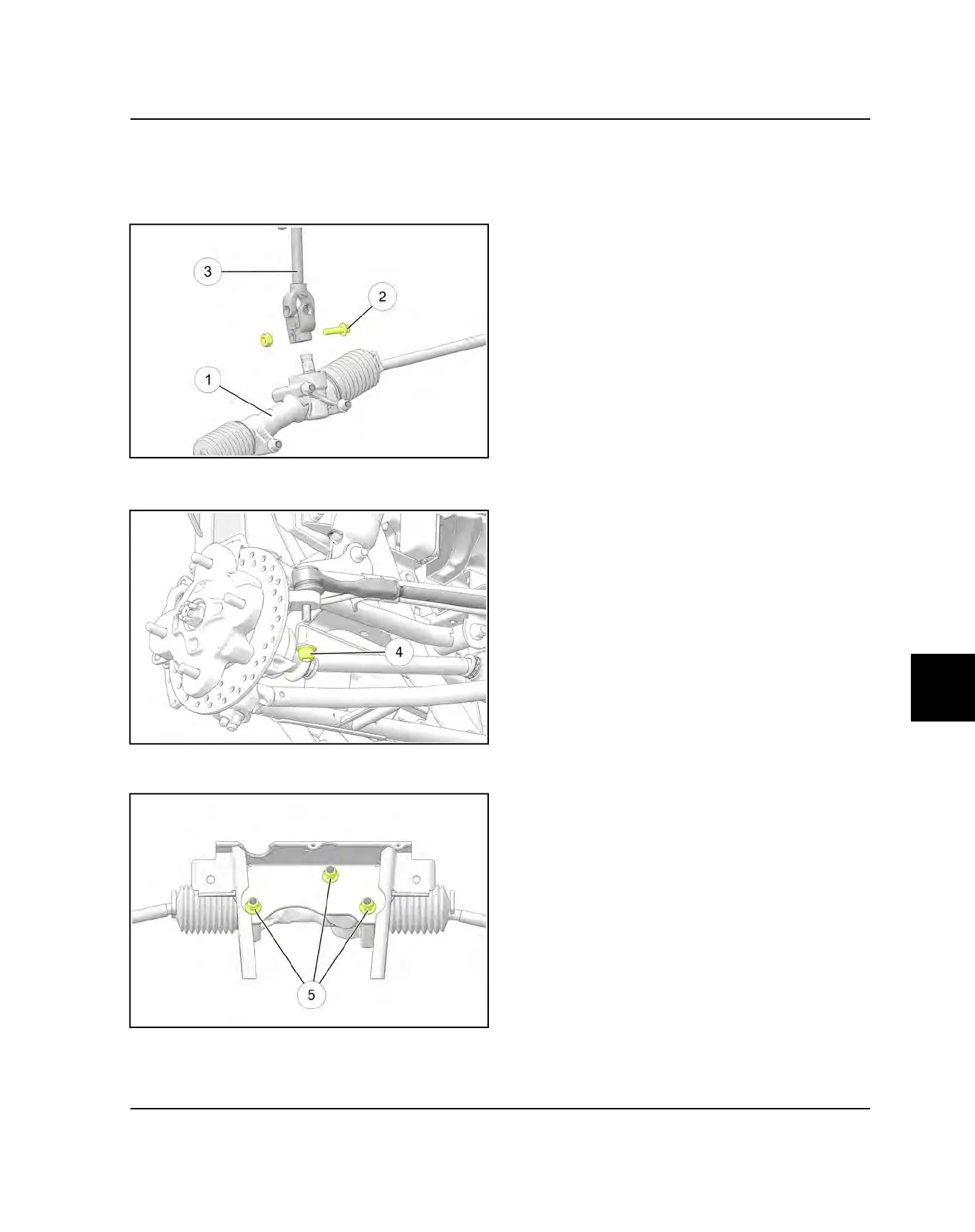

STEERING RACK REMOVAL
1. Remove the pinch bolt
w
retaining the lower portion
of the steering shaft
e
to the steering rack assembly
q
.
2. Remove the nuts
r
retaining the both tie rod ends to
the steering knuckle.
3. Remove the three fasteners
t
retaining the steering
rack to the frame.
4. Remove Steering Rack from vehicle.
