Polaris RANGER XP 1000 2018 - EPS Troubleshooting (Power Steering Non-Functional with Mil On)

To Next Page

To Previous Page

9928487 R01 - 2018 RANGER XP 1000 Service Manual

11.55

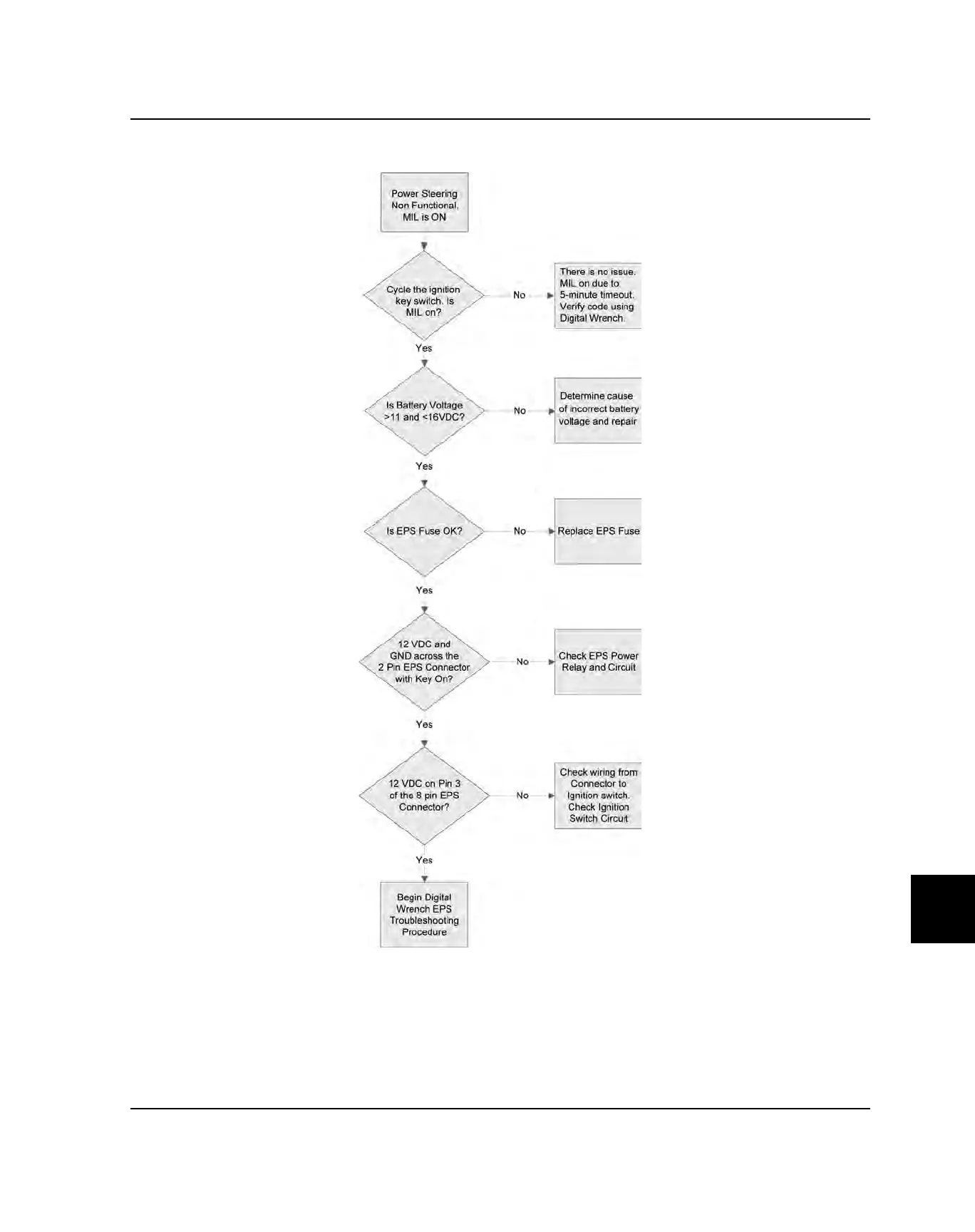

EPS TROUBLESHOOTING (POWER STEERING NON-FUNCTIONAL WITH MIL ON)
