Polaris RANGER XP 1000 2018 - Front Body Assembly View

10
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
10.7

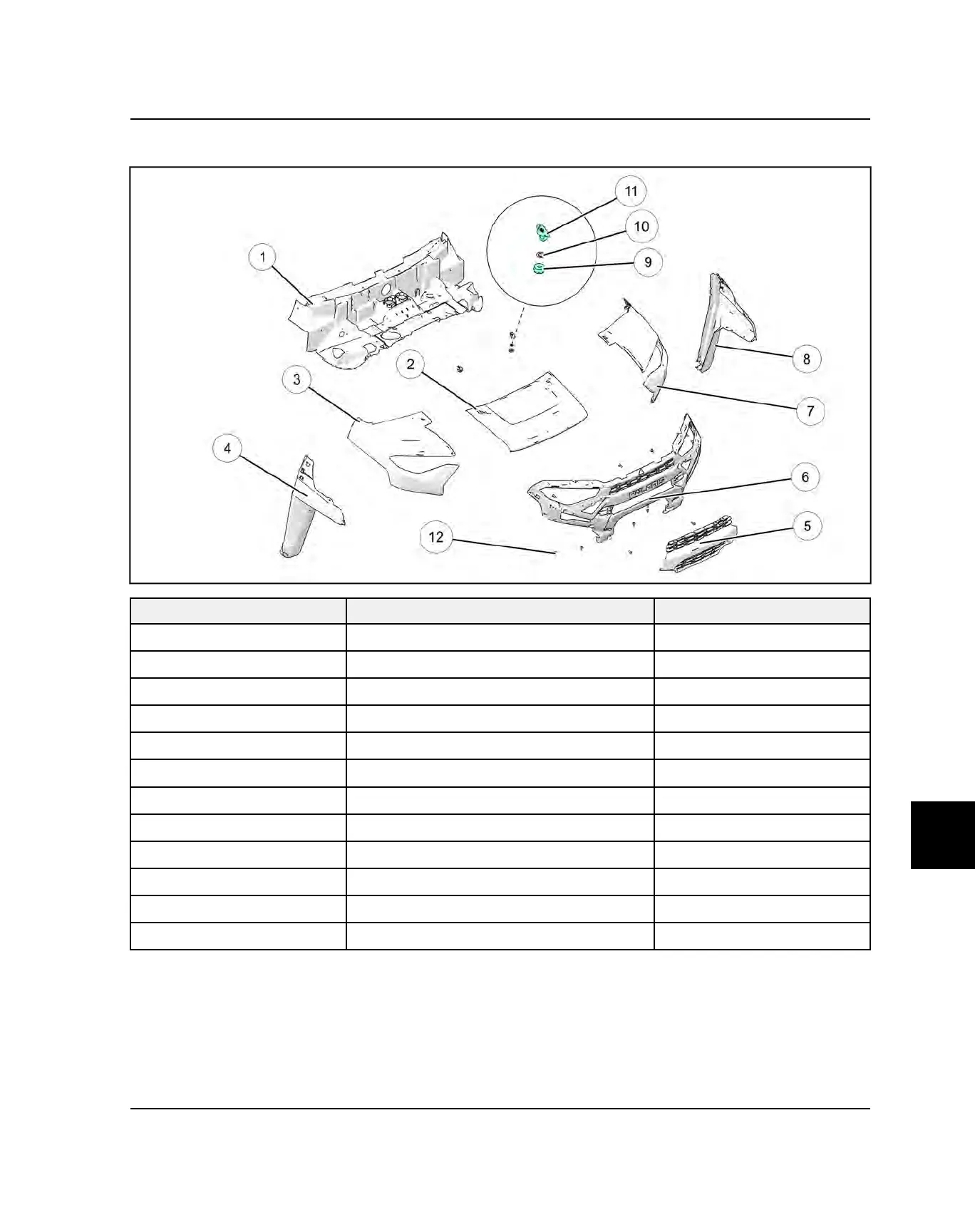

FRONT BODY ASSEMBLY VIEW
REF
DESCRIPTION TORQUE
q
LINER, UNDER HOOD
NA
w
HOOD
NA
e
FENDER, FRONT RH 22 in lbs (3 Nm)
r
FENDER FLARE, RH NA
t
GRILL, UPPER
NA
y
FRONT FASCIA 42 in-lbs (5 Nm)
u
FENDER, FRONT LH 22 in lbs (3 Nm)
i
FENDER FLARE, LH NA
o
GROMMET, LATCH
NA
a
WASHER
NA
s
LATCH, 1/4 TURN
NA
d
FRONT FASCIA AND GRILL FASTENERS 42 in-lbs (5 Nm)
BODY / FRAME
