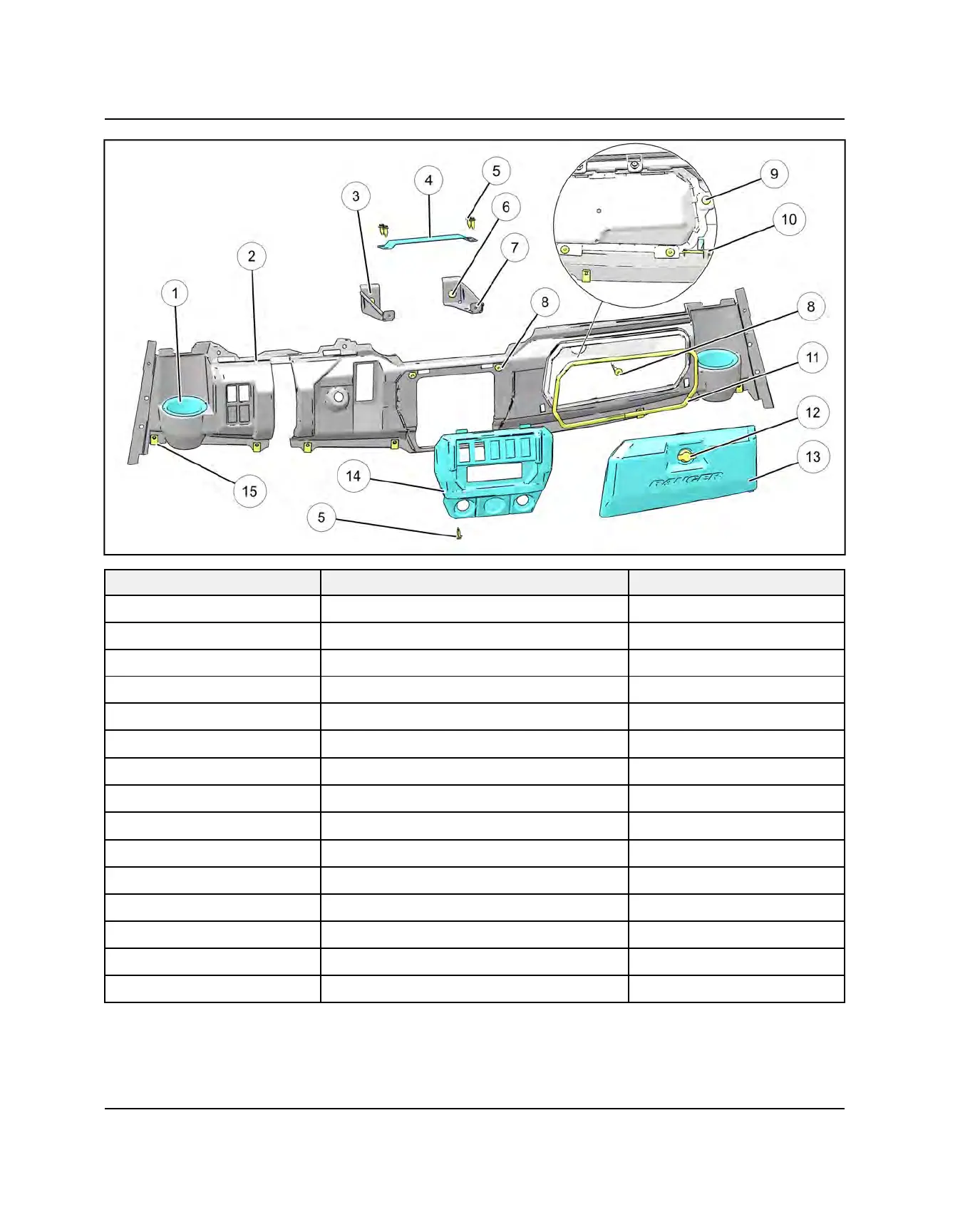

REF
DESCRIPTION TORQUE
q
CUP HOLDER
NA
w
DASH, MAIN
NA
e
BRACKET-DASH, LH
NA
r
DRIP PLATE NA
t
PUSH RIVET
NA
y
DASH BRACKET FASTENER 6 ft-lbs (8 Nm)
u
BRACKET-DASH, RH
NA
i
DASH, MAIN FASTENER 42 in-lbs (5 Nm)
o
UPPER GLOVEBOX FASTENER 42 in-lbs (5 Nm)
a
HINGE PIN-GLOVEBOX
NA
s
GLOVEBOX SEAL SEAM
NA
d
GLOVEBOX LATCH 1/4 TURN 36 in lbs (4 Nm)
f
UPPER GLOVEBOX COVER
NA
g
DASH CONTROLS
NA
h
DASH-MAIN FASTENING NUT
NA
