BODY COMPONENT SERVICE
DRIVER’S SEAT REMOVAL

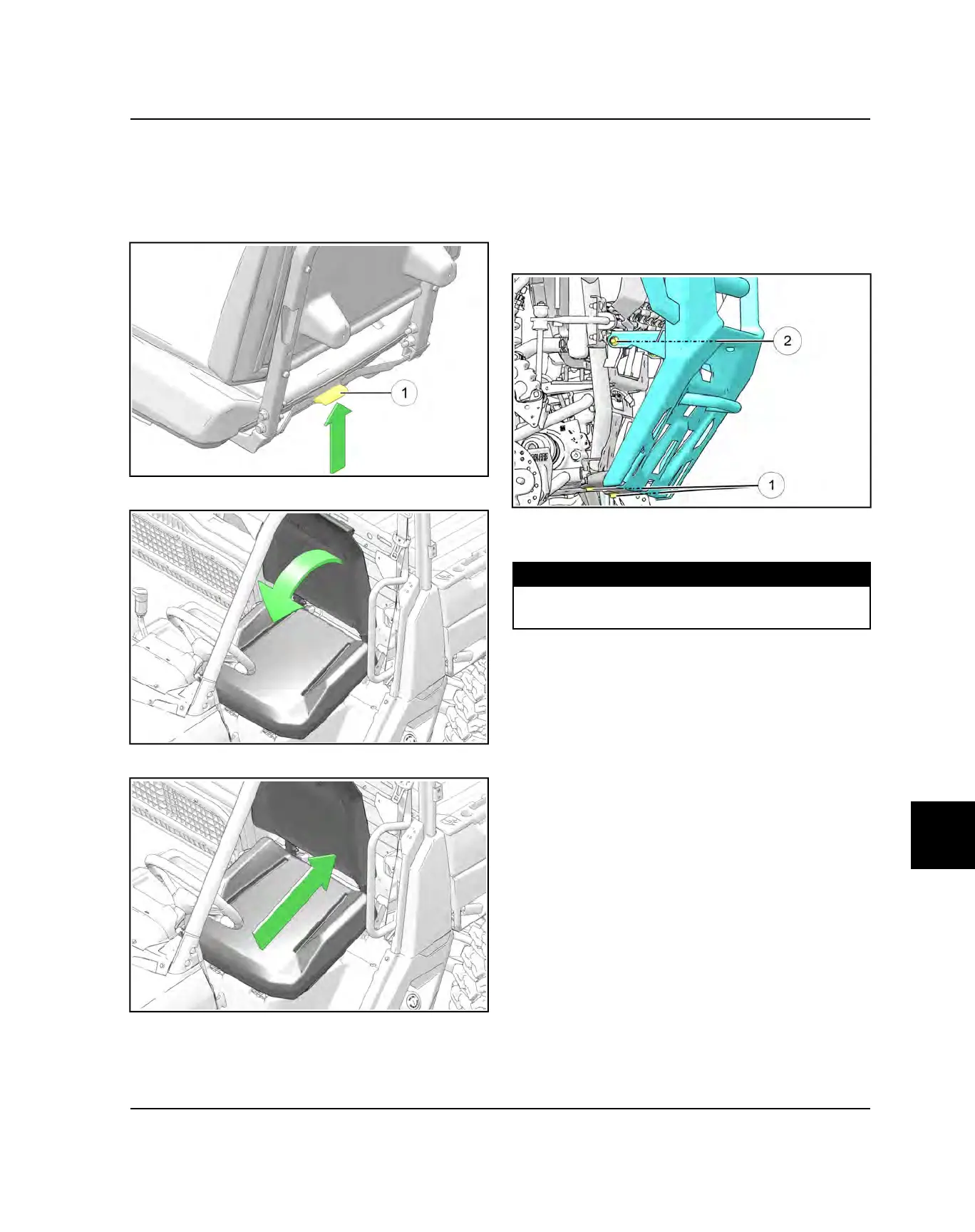

1. Remove Driver Seat.
2. Lift up on Release Lever
q
.
3. Tilt seat forward.
4. Slide seat rearward to remove.
FRONT BUMPER REMOVAL
1. Remove the two fasteners retaining the bottom of the
bumper to the frame.
2. Remove the two fasteners
w
retaining the top of the
bumper to the frame.
3. Carefully pull the bumper straight out to remove it
from the vehicle.
TORQUE
Front Bumper Fasteners
30 ft-lbs (41 Nm)
BODY / FRAME
