9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
6.15

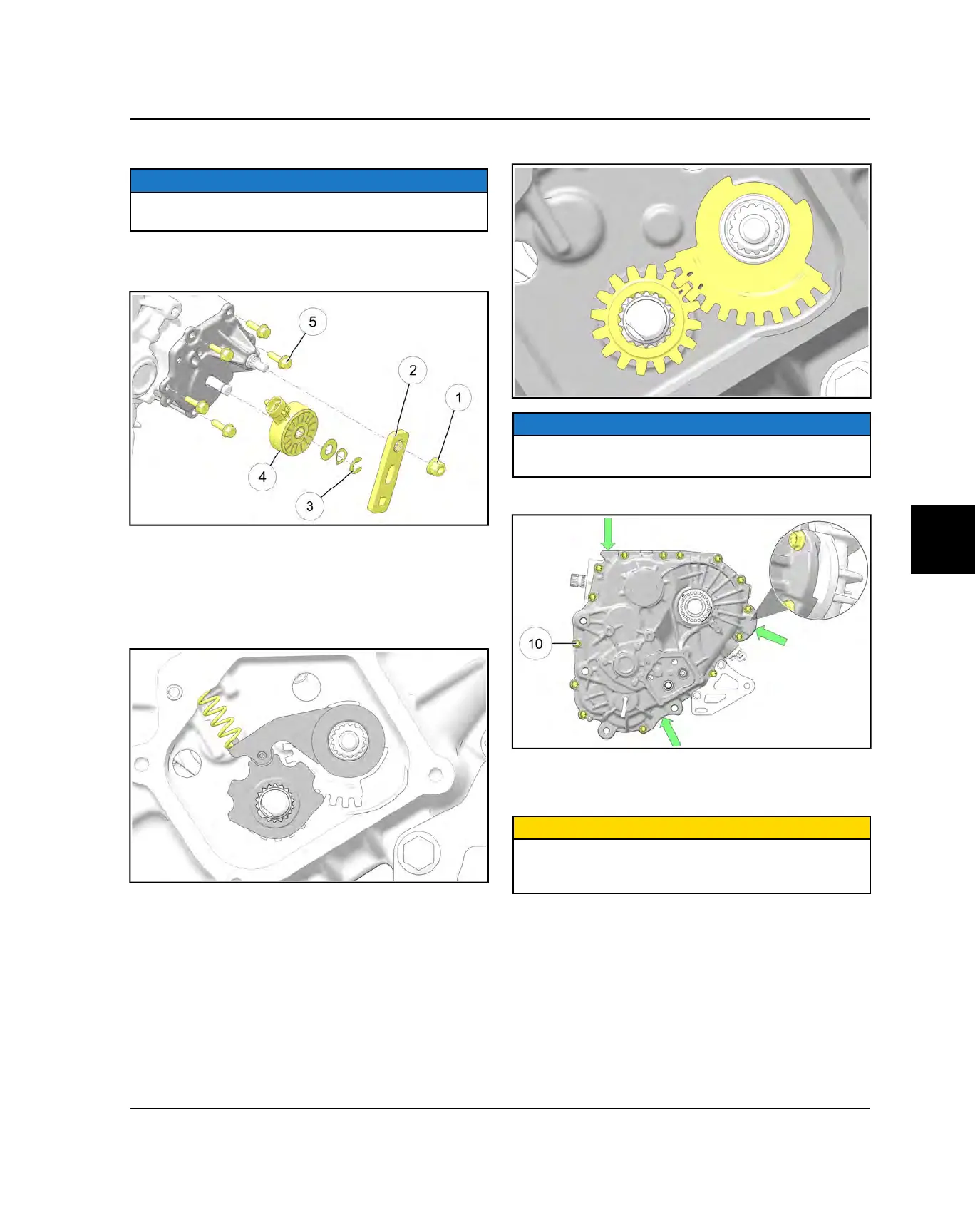

TRANSMISSION DISASSEMBLY
NOTE
Refer to the exploded view at the end of this chapter as
a reference.
1. Drain and properly dispose of transmission fluid.
2. Remove bell crank nut
q
and bell crank
w
.
3. Remove E-clip
e
retaining the spring washer, washer
and gear selector switch
r
.
4. Remove sector cover bolts
t
and remove the cover.
5. Remove detent spring , detent pawl and detent star.
Note the master spline on the detent star and the shift
shaft.
6. Remove the two sector gears.
NOTE
Note the timing marks on the shift gears for reassembly
purposes.
7. Remove transmission case bolts
a
.
8. Using the three (indicated by arrows) designated pry
points shown in the image, separate the transmission
case halves.
CAUTION
Do not pry on the transmission case mating surfaces or
the transmission cases will be damaged and leak oil
after it is reassembled.
TRANSMISSION
