Polaris RANGER XP 1000 2018 User Manual

3.6
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
OIL PRESSURE TEST
1. Attach the Oil Pressure Gauge Adapter (PU-52492)
to the Oil Pressure Gauge (PV-43531).
Oil Pressure Gauge Adapter: PU-52492
Oil Pressure Gauge: PV-43531
2. Raise the dropbox to access the engine.

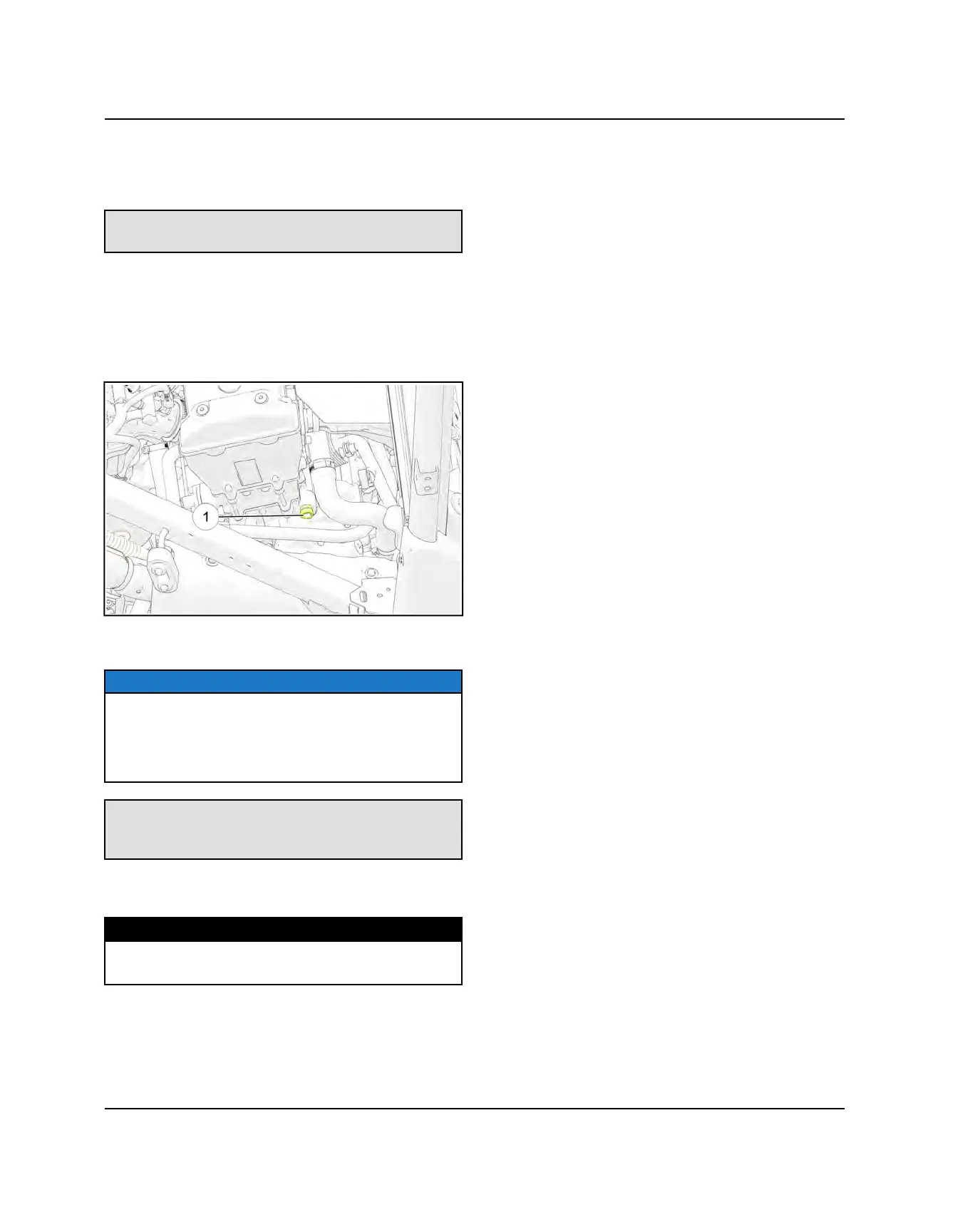

3. Clean the area around the main oil gallery plug ,
located in the upper crankcase on the MAG side of
the engine.
4. Remove the crankcase gallery plug
q
and insert the
oil pressure adapter.
5. Start engine and allow it to reach operating
temperature, monitoring gauge indication.
NOTE
Test results are based on the use of the recommended
engine oil (Polaris PS-4 or PS-4 Extreme Duty) at
operating temperature, and may vary considerably if
any other oil is used or if engine is not up to
temperature.
Oil Pressure Specification (Engine Hot):
Minimum @ 1200 RPM: 10 PSI
Minimum @ 7000 RPM: 40 PSI
6. Upon assembly, torque the crankcase gallery plug to
specification.
TORQUE
Crankcase Oil Gallery Plug:
22 ft-lbs (30 Nm)
ENGINE / COOLING / EXHAUST
