FUEL SYSTEM MAINTENANCE

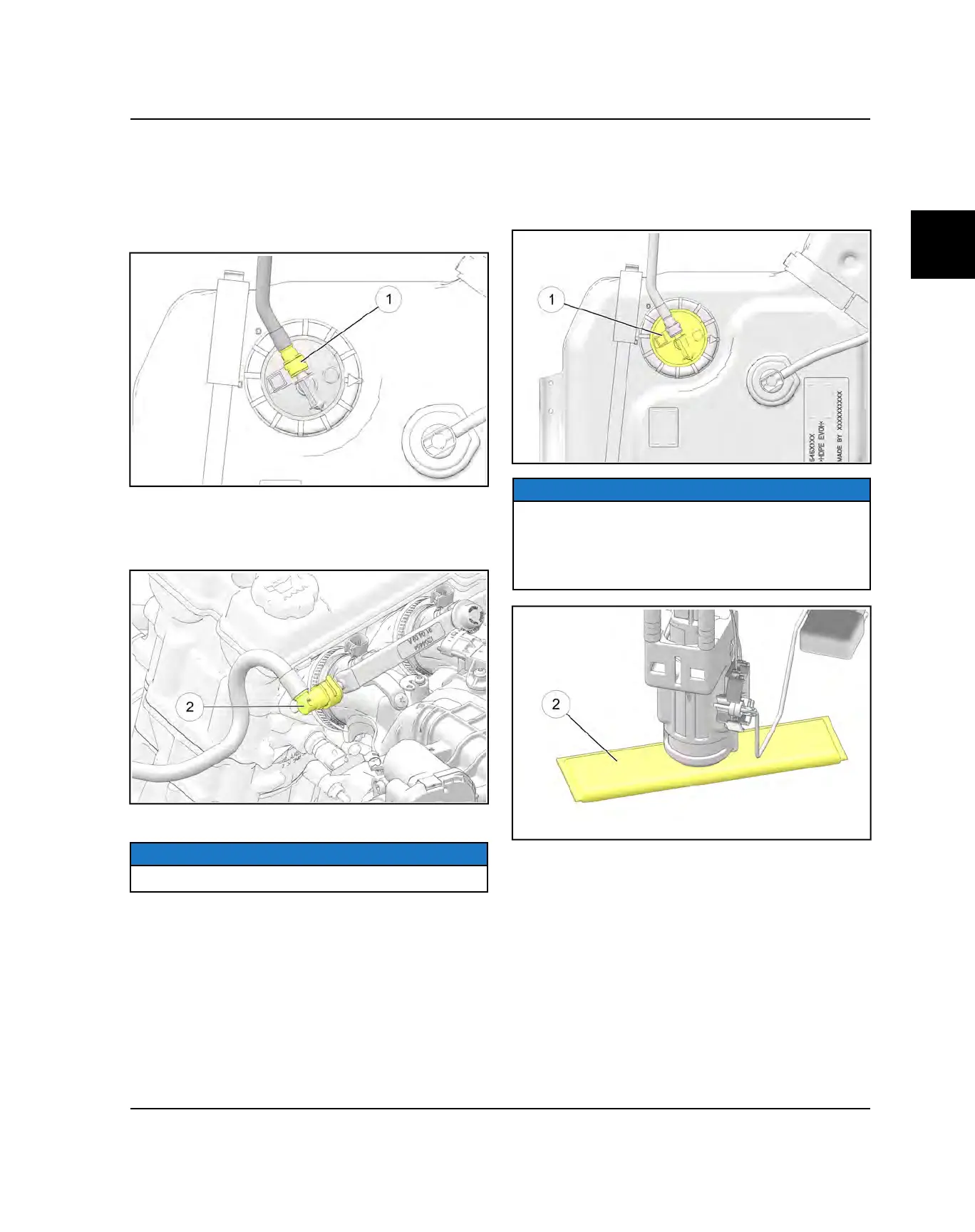

FUEL LINE INSPECTION
1. Check the quick-connect fuel line
q
at the fuel pump
for signs of wear, deterioration, damage or leakage.
Replace line if necessary.
2. Tilt the rear cargo box and check the quick-connect
fuel line
w
at the fuel rail for signs of wear,
deterioration, damage or leakage. Replace line if
necessary.
3. Be sure fuel lines are routed and retained properly.
NOTE
Make sure lines are not kinked or pinched.
FUEL PUMP / FILTER INSPECTION
The fuel pump assembly
q
is located in the fuel tank
under the driver’s seat.
NOTE
The serviceable, high-volume, high-pressure, fuel
pump assembly includes a non-serviceable preliminary
filter
w
. The fuel pump must be replaced as an
assembly. Refer to Fuel Pump Replacement, page
4.23 procedure.
