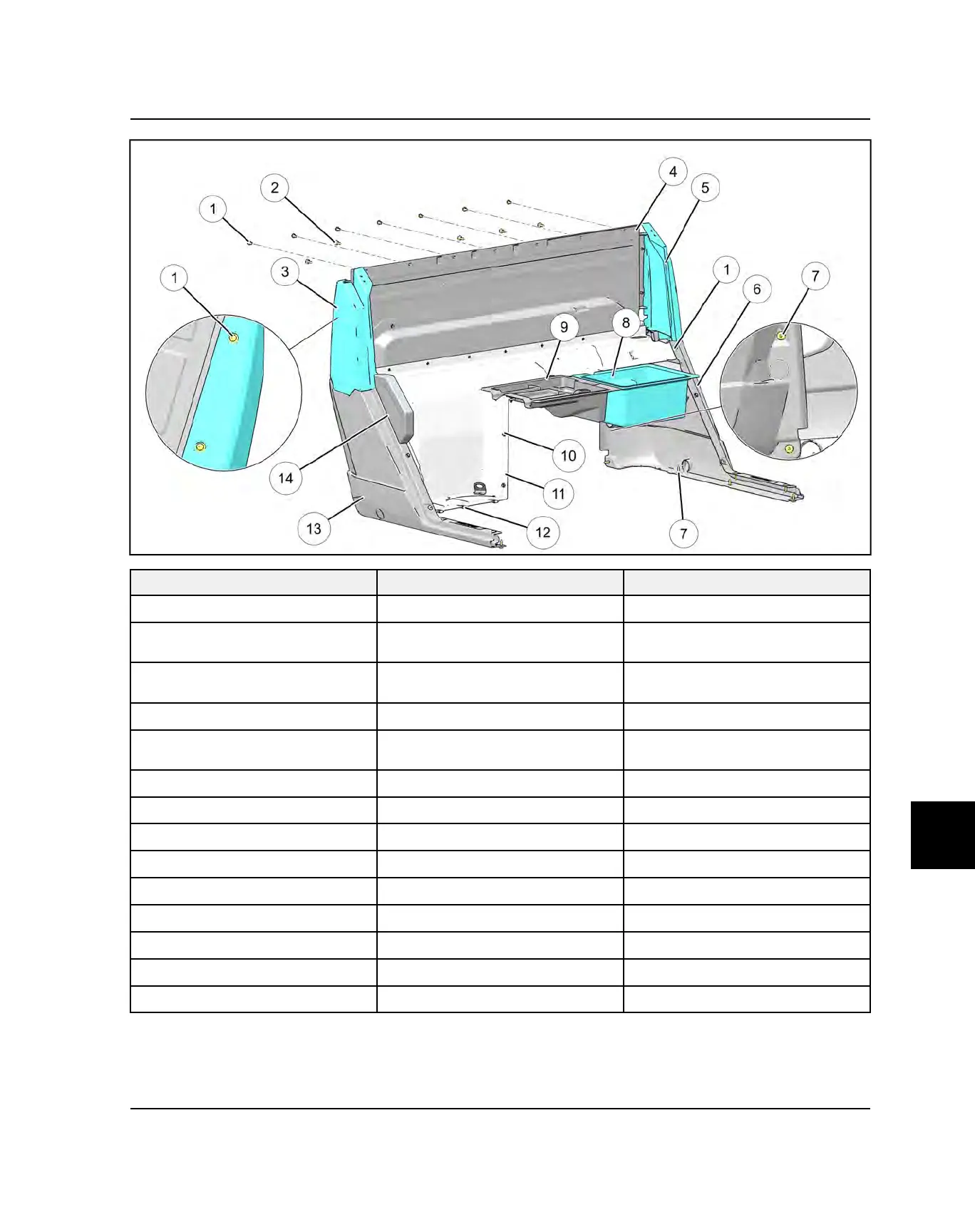

9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
10.9
REF
DESCRIPTION TORQUE
q
PUSH RIVET
NA
w
REAR CLOSE OFF PANEL
FASTENER
42 in-lbs (5 Nm)
e
RIGHT REAR UPPER FENDER
FLARE
NA
r
REAR CLOSE OFF PANEL
NA
t
LEFT REAR UPPER FENDER
FLARE
NA
y
PUSH RIVET
NA
u
LEFT REAR ROCKER PANEL
NA
i
PLUG COMPARTMENT
NA
o
RH BIN STORAGE
NA
a
PUSH RIVET
NA
s
REAR LOWER CLOSE OFF PANEL
NA
d
M6 NUT NA
f
RIGHT REAR ROCKER PANEL
NA
g
COVER, SEAT-PIVOT
NA
BODY / FRAME
