11.36
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

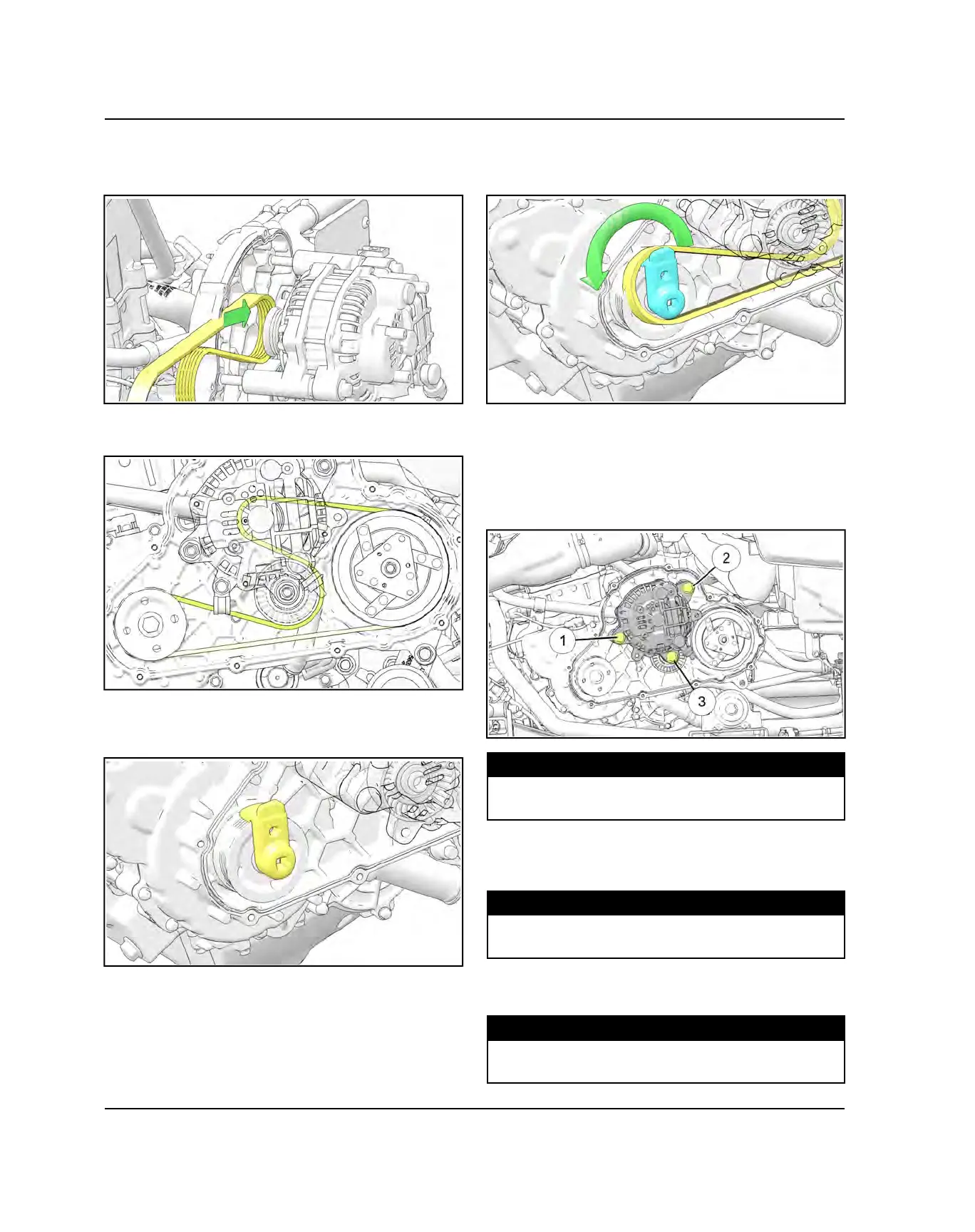

3. Route the belt between the alternator pulley and the
engine HVAC cover to install around the compressor
pulley.
4. Re-tighten the alternator fasteners and route the belt
around the alternator, compressor and idler pulleys.
5. Install drive belt installation tool PU-52087 onto the
crankshaft drive pulley. Ensure the pin is inserted into
one of the pulley holes.
6. Route the belt over the wedge of the tool and then
turn the tool counter-clockwise using 3/8-in drive
ratchet until the belt is fully seated on the pulley.
7. Verify the belt is properly routed around all of the
pulleys.
8. Remove the belt installation tool from the crankshaft
drive pulley.
9. Torque the alternator fasteners to specification in the
sequence as shown.
TORQUE
Alternator Mounting Fasteners:
37 lb-ft (50 Nm)
10.Install the inner alternator cover and torque the
fasteners to specification. Reconnect the alternator
air outlet hose.
TORQUE
Alternator Cover Fasteners:
48 lb-in (5.4 Nm)
11. Install the outer alternator cover and torque the
fasteners to specification.
TORQUE
Alternator Cover Fasteners:
48 lb-in (5.4 Nm)
ELECTRICAL
