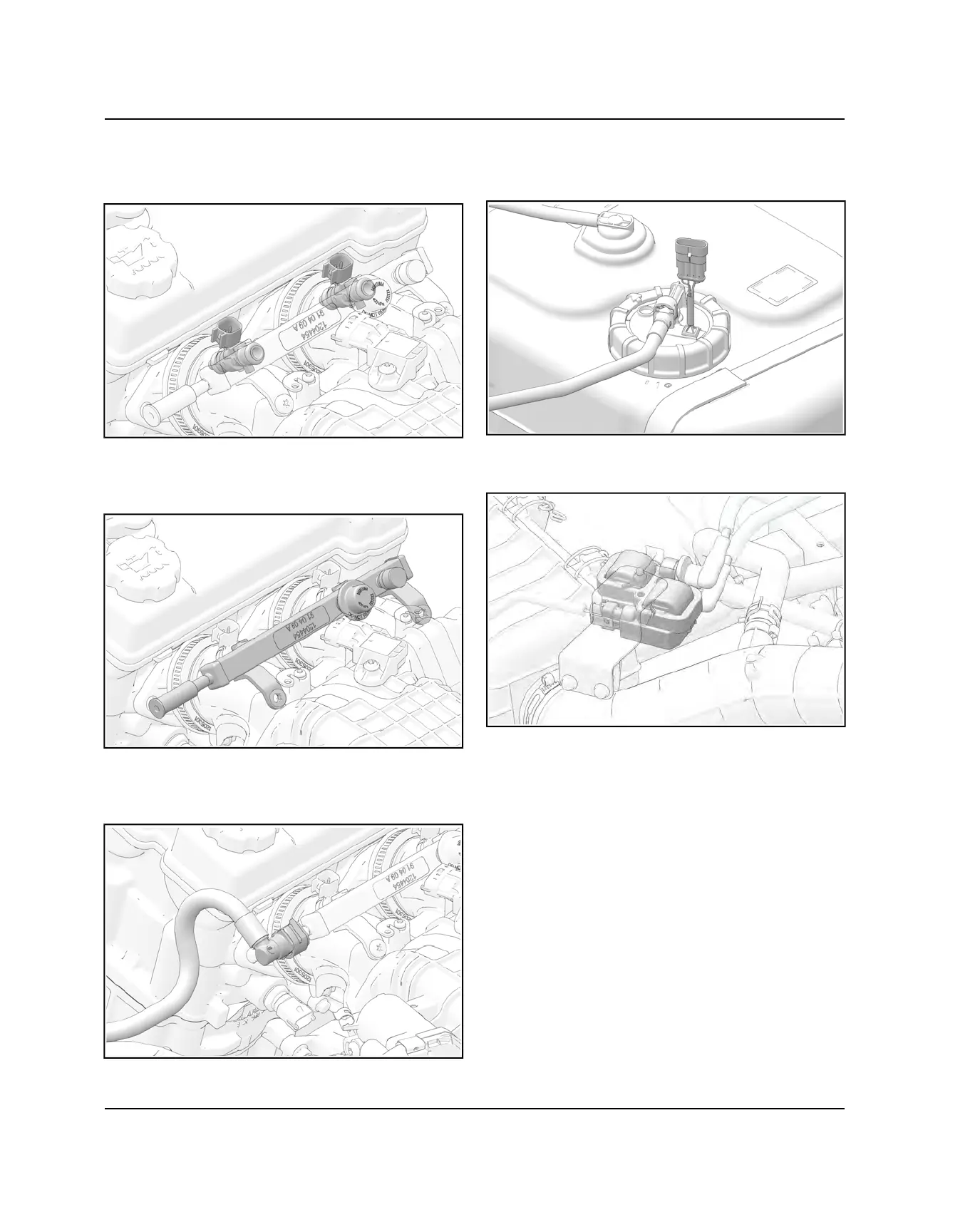

7. Fuel Injectors
- Located on the top of the intake plenum in the intake
track, retained on top by the fuel rail.
8. Fuel Rail Assembly
- Located on the intake plenum, on top of the fuel
injectors.
9. Fuel Supply Line
- Connected to the left end of the fuel rail and top of
the fuel pump.
10.Fuel Pump / Regulator / Fuel Level Sender
Assembly
qq
- Located under the driver’s seat.
11. Ignition Coil / High Tension Leads
- Located next to the airbox behind the driver’s seat.
FUEL SYSTEM
