5.23
3. Verify there are no binding or rough spots. If problems
are noted, replace one-way bearing
u
and washers
y
.

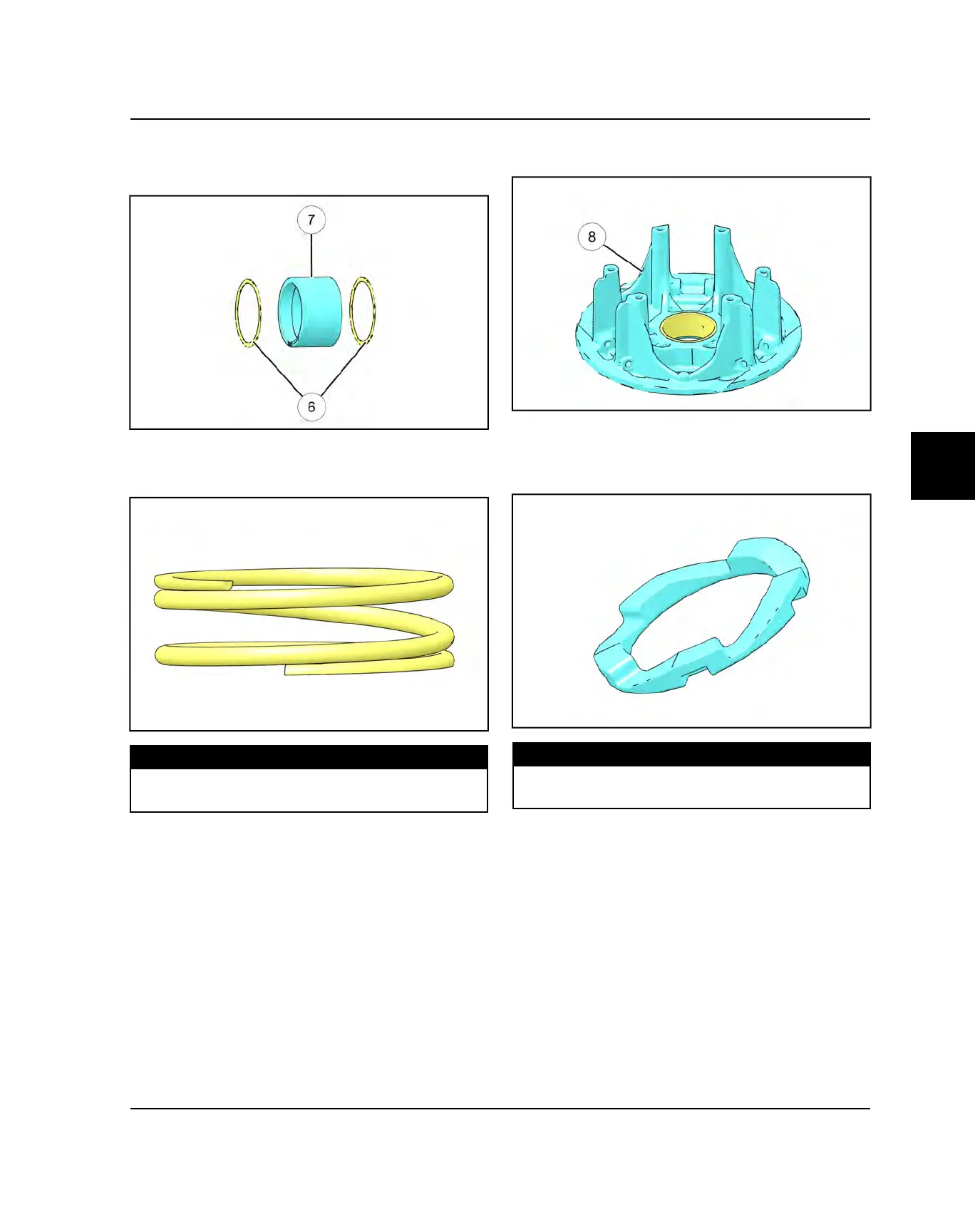

4. Inspect the EBS spring (plain silver painted).
Measure the free length of the spring and compare to
specification. Replace if necessary.
MEASUREMENT
EBS Spring Free Length
0.76 in (17.78 mm)
5. Inspect the moveable clutch sheave
i
for damage or
wear.
6. Inspect the Helix for wear. The Helix should be
replaced if any cracking or grooving is found.
Measure the Helix and replace if it is found to be worn
beyond specification.
MEASUREMENT
Helix Service Limit
0.146” (3.71 mm)
