9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

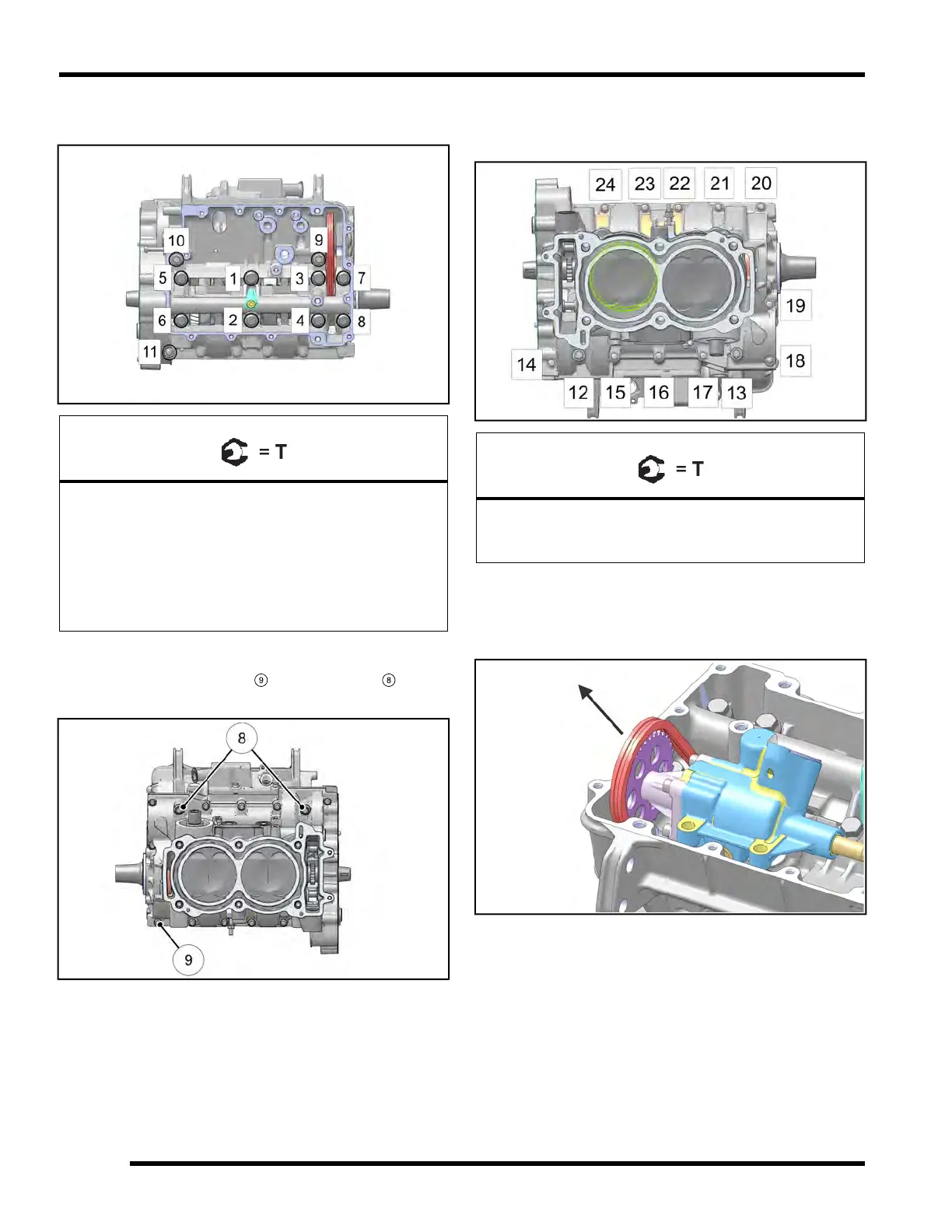

10. Torque lower crankcase bolts in sequence to
specification. Repeat sequence to verify final torque.
Lower Crankcase Bolts:
M10 Bolts:
Step 1: 9 ft-lb (12 Nm)
Step 2: 21 ft-lb (28 Nm)
Step 3: Tighten add’n 90°
M8 Bolts: 26 ft-lb (35 Nm)
M6 Bolts: 9 ft-lb (12 Nm)
11. Rotate the engine so the cylinder is facing up.
12. Install the eleven M6
9
and two M8
8
upper
crankcase bolts. Tighten all bolts lightly by hand.
13. Torque the upper crankcase bolts in sequence to
specification (start with #12). Repeat the sequence
to verify final torque.
Upper Crankcase Bolts:
M8 Bolts: 26 ft-lb (35 Nm)
M6 Bolts: 9 ft-lb (12 Nm)
14. Rotate the engine so the cylinder is facing down.
15. Install a new seal on the oil pump.
16. Lift the oil pump drive chain and install the oil pump.
ENGINE / COOLING SYSTEM
