9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

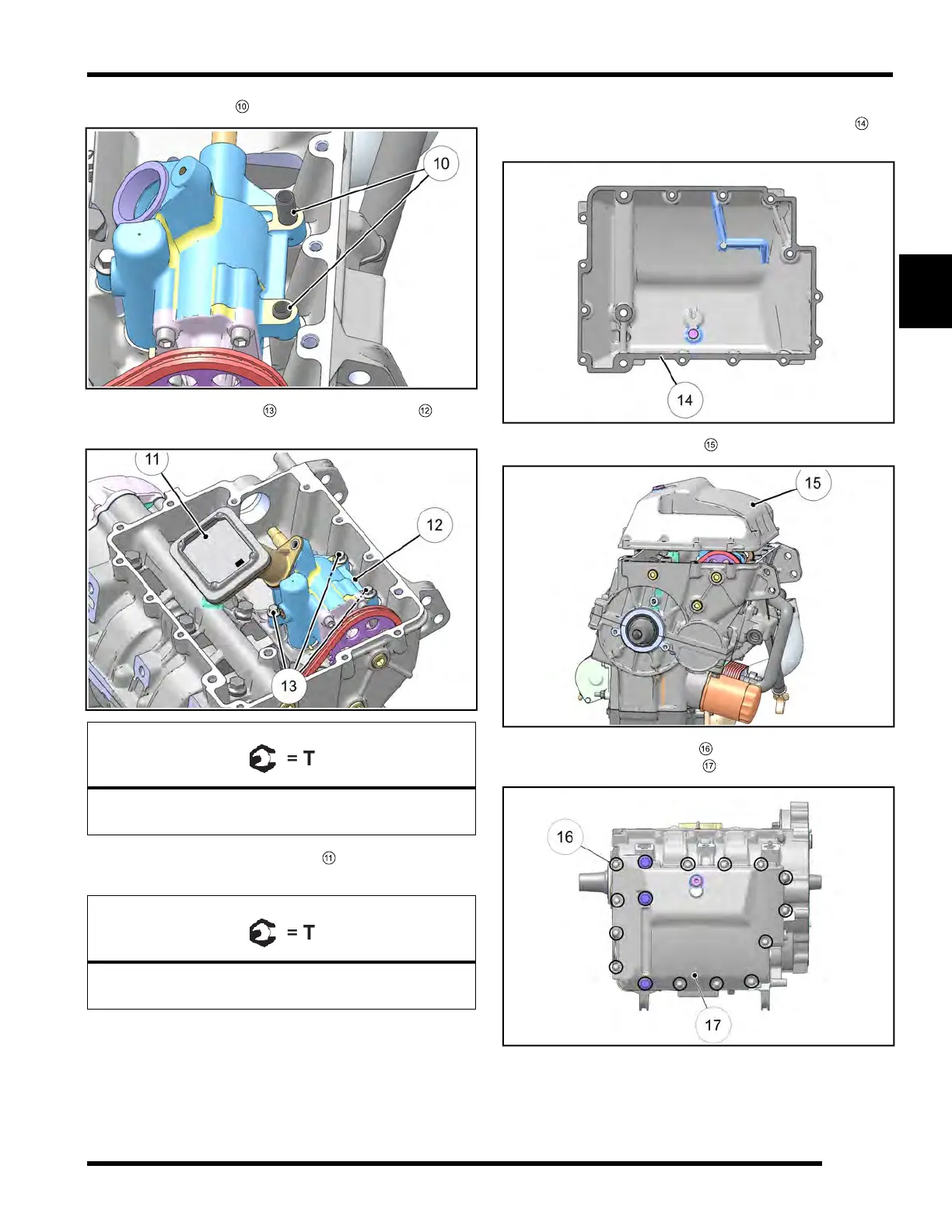

17. Install dowel pins
10
into oil pump mounting holes.
18. Install the three bolts
13
that retain oil pump
12
to the
crankcase. Torque mounting bolts to specification.
Oil Pump Mounting Bolts:
7 ft-lbs (10 Nm)
19. Reinstall oil pump pick-up
11
. Torque mounting
screws to specification.
Oil Pump Pick-Up Retaining Screws:
7 ft-lb (10 Nm)
20. Clean the gasket sealing surfaces on oil sump cover
and crankcase to remove old gasket material and
any oil.
NOTE: Gasket surfaces must be DRY and oil
free. Use care upon assembly to keep oil away.
21. Apply a thin, continuous film of Crankcase Sealant
(PN 2871557) to sump cover mating surface
14
as
shown. Do not allow sealant to dry before assembly.
22. Install the oil sump cover
15
onto the crankcase.
23. Install the thirteen M6
16
and three M8 bolts that
retain the oil sump cover
17
to the crankcase.
