9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

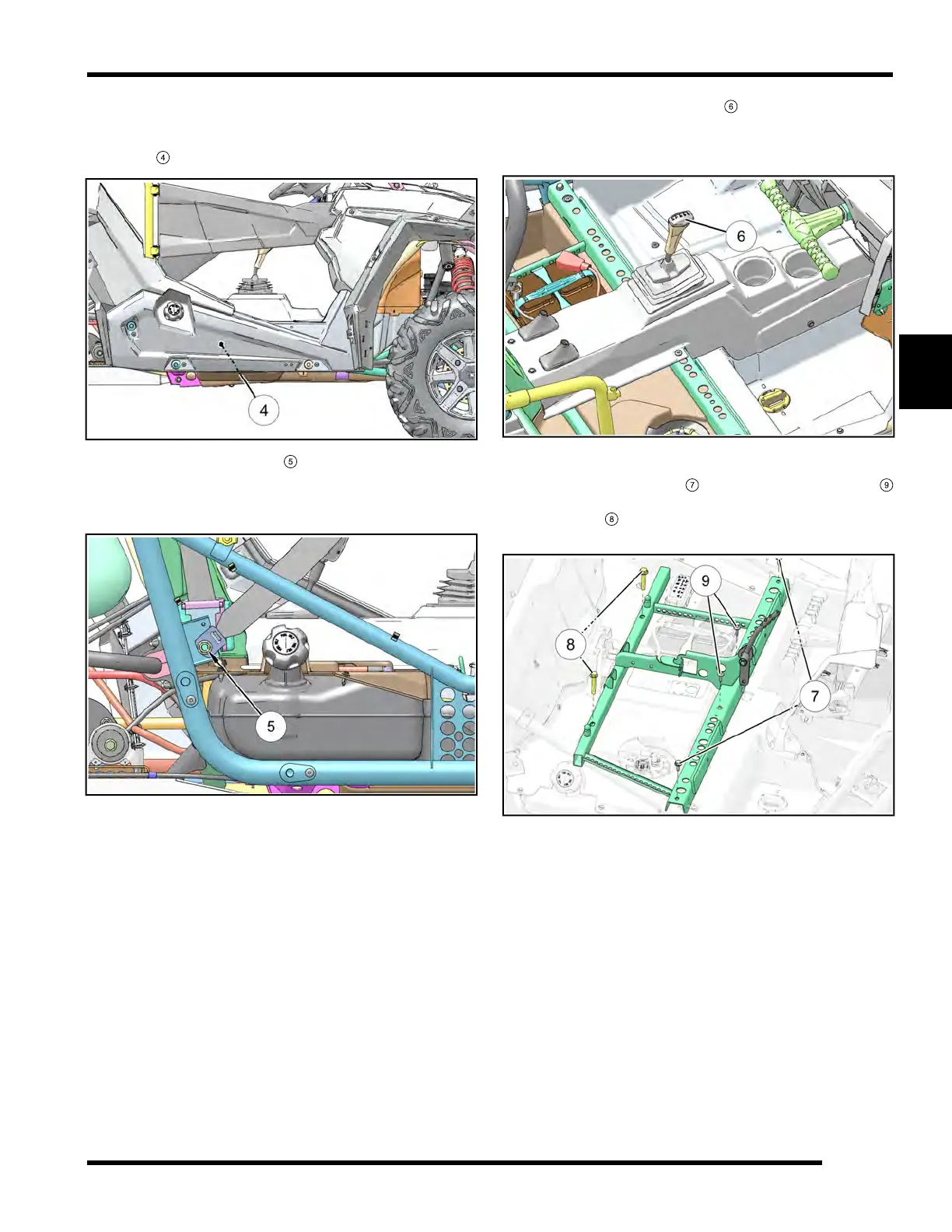

5. Remove the push rivets and Torx screws retaining
the right-hand rocker panel using the multi-function
pliers and a T40 Torx driver. Remove the rocker
panel
4
from the vehicle.
6. Remove the fastener
5
retaining the seat belt
mechanism to the frame near the right rear portion of
the fuel tank. Once removed, place the mechanism
in the rear cargo box to keep it out of the way.
7. Remove the shift knob
6
using a flat blade
screwdriver and T25 Torx driver. Remove the Torx
screws retaining the center console. Remove the
console from the vehicle.
8. Remove the shift linkage from the shifter.
9. Remove the two bolts
7
and two T40 Torx screws
9
retaining the front of the seat base frame and two
rear bolts
8
. Remove the rear seat base assembly
from the vehicle.
