4.12
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

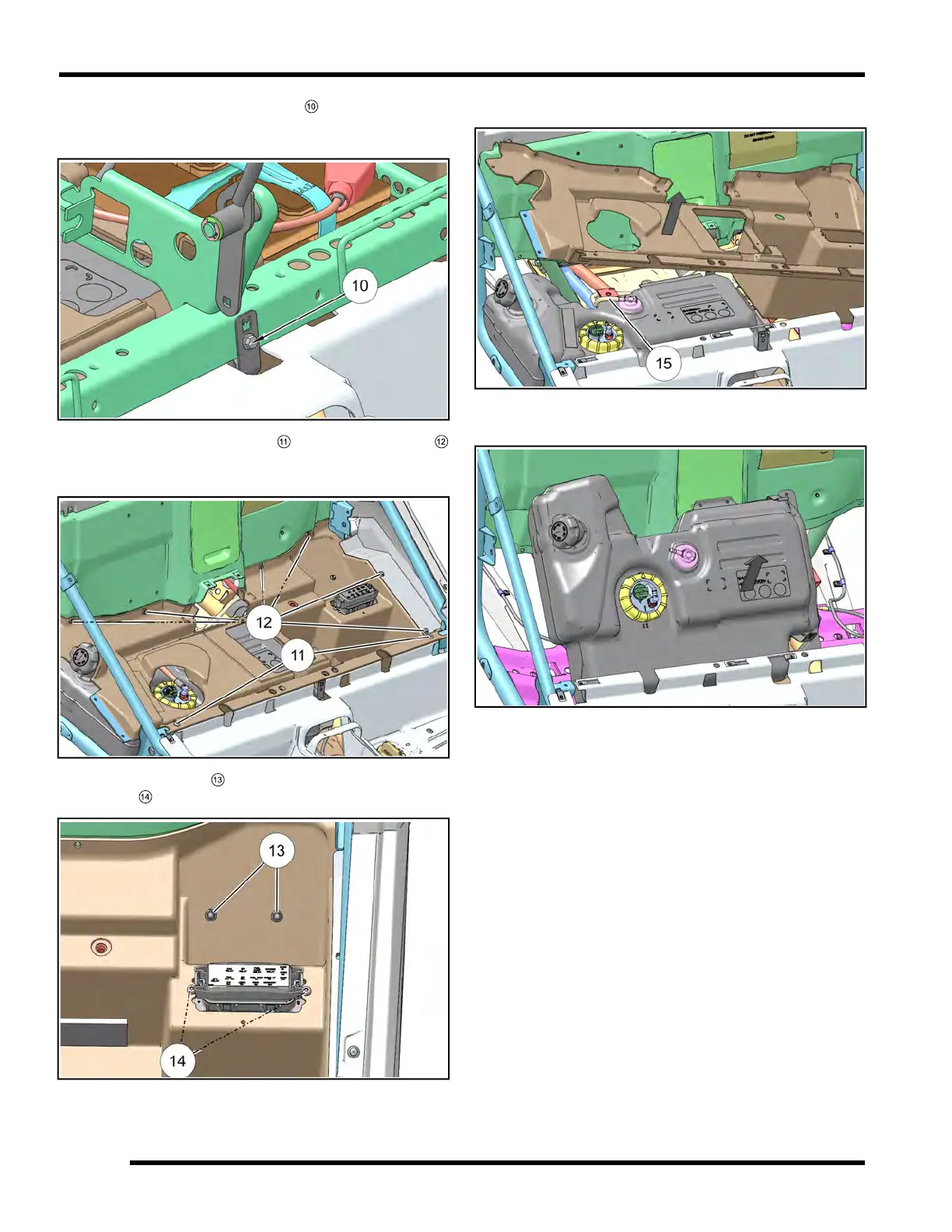

10. Remove the T-40 Torx screw
10
retaining the fuel
tank strap to the seat base frame. Remove the strap
from the other side of the seat base frame as well.
11. Remove the Torx screws
11
and plastic rivets
12
retaining the block-off panel using a T40 Torx driver.
Remove the panel from the vehicle.
12. Remove the nuts
13
retaining the regulator and Torx
screws
14
retaining the fuse box.
13. Remove the fuel tank vent line from the tank fitting.
14. Lift the rear of the fuel tank up first. Carefully pull the
fuel tank out of the vehicle.
FUEL SYSTEM
