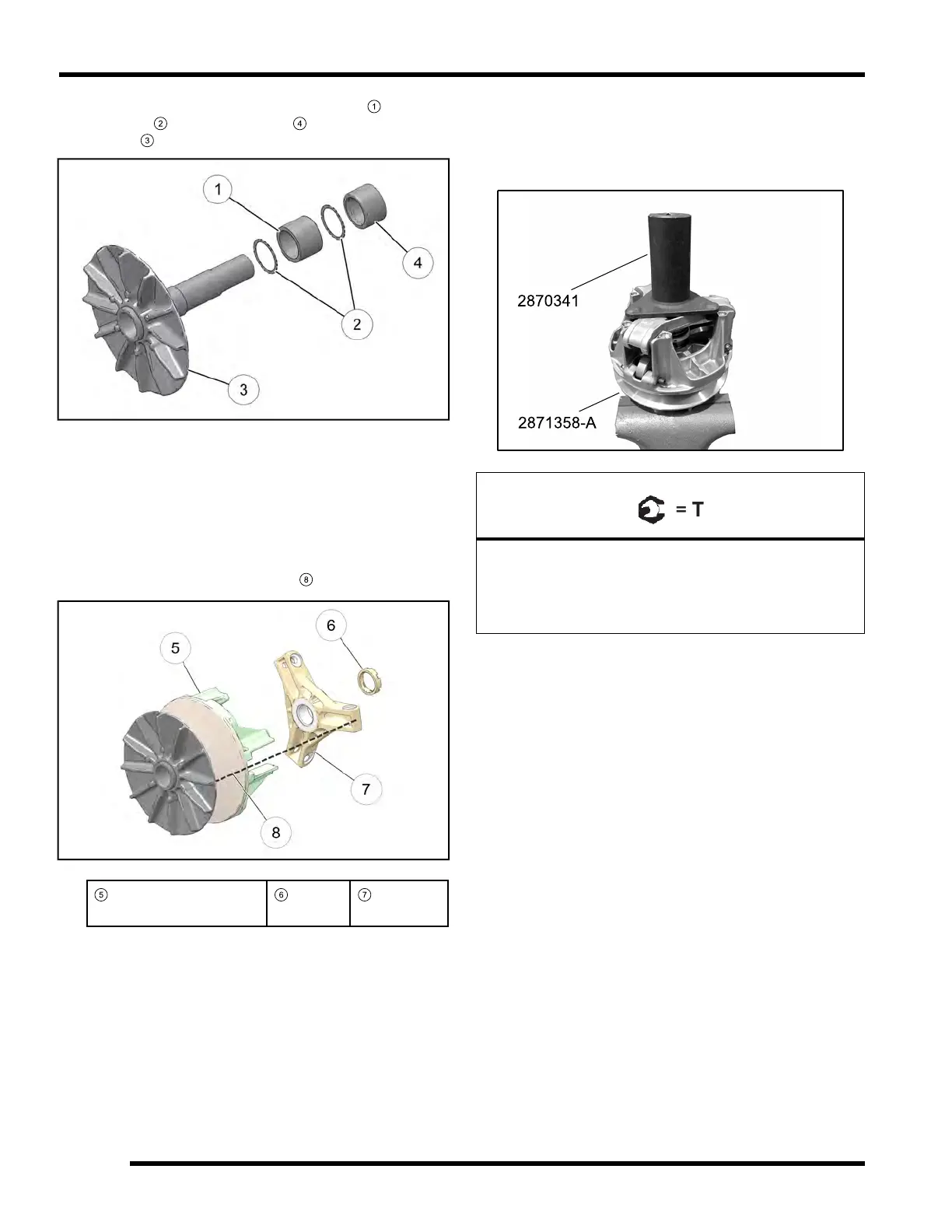

2. Install the non-braking needle bearing
1
, the two
washers
2
and the spacer
4
onto the stationary
sheave
3
.
3. Install moveable sheave onto stationary sheave
shaft. Be sure the moveable sheave slides freely on
the spacer.
4. Apply 0.4 mL of Loctite® 620™ and 0.4 mL of
Loctite® 7088™ Primer in 90° apart in vertical stripes
to the shaft threads.
5. Install the spider assembly onto the shaft threads. Be
sure all of the alignment marks
8
are in alignment.
5
Moveable Sheave
Asm
6
Jam
Nut
7
Spider
6. Install clutch onto holding fixture (PN 2871358-A)
and secure in a bench vice. Tighten the spider using
Clutch Spider Tool (PN 2870341). Torque spider to
specification.
Spider Assembly:
290 ft-lb (393 Nm)
(Apply 0.4 mL Loctite® 7088 Primer and 0.4 mL
Loctite® 620™) in 90° apart in vertical stripes to the
shaft threads.
7. Apply 0.1mL of Loctite® 620™ and 0.1mL of
Loctite® 7088™ Primer in 90° apart to the threads of
the spider jamb nut. Install spider jamb nut onto
stationary shaft threads.
