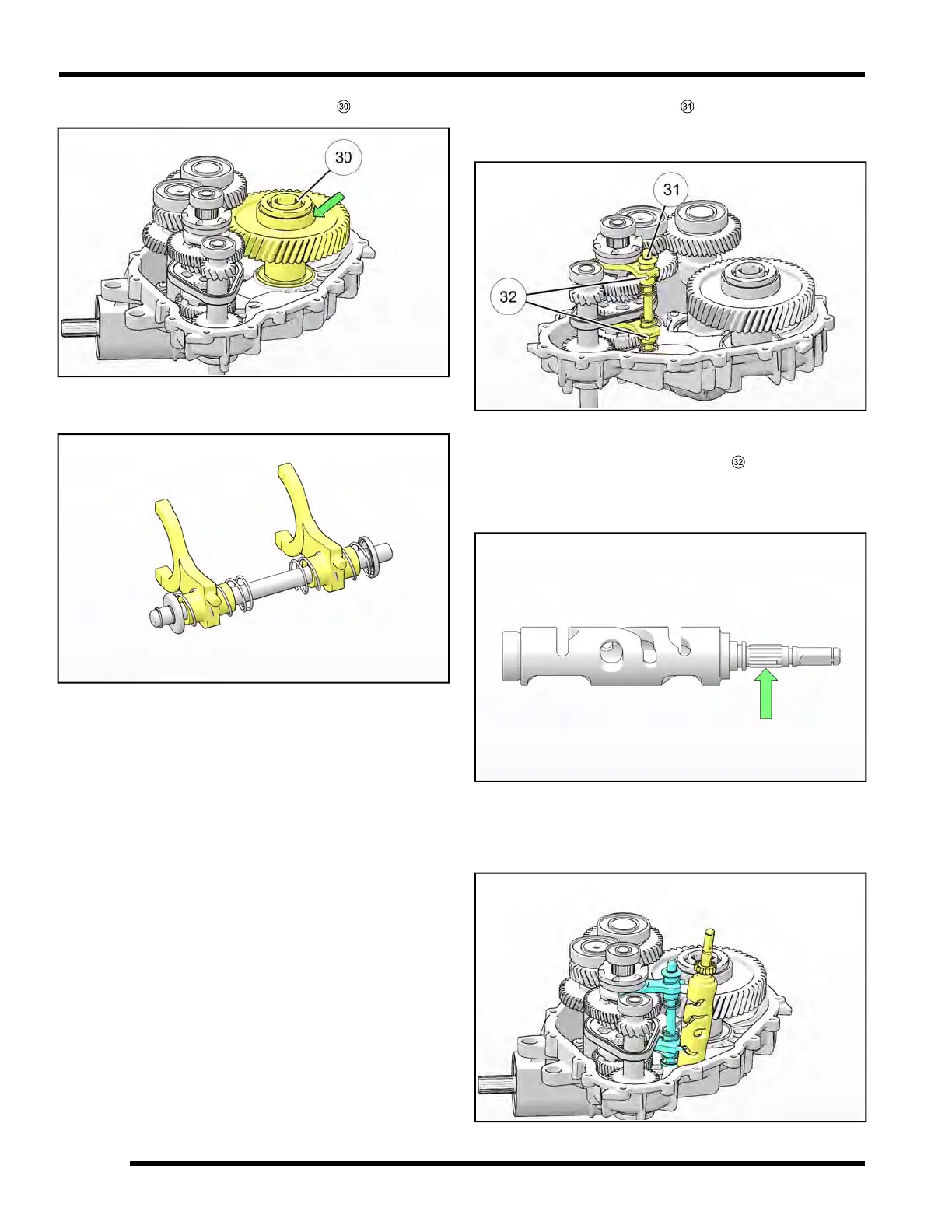

18.Install the rear output shaft assembly
30
.
19.Assemble the shift shaft rail if previously
disassembled.
NOTE: Both shift forks need to be orientated the
same way, so that the shift fork pins are both
offset to the same side of the rail.
20.Install the shift shaft rail
31
and shift forks into the
transmission housing as an assembly. Be sure the
shift forks are engaged into the engagement dogs.
NOTE: Shift fork pins should be offset towards
the input shaft as shown above
32
.
21.Inspect the shift drum for any damage or wear.
Inspect the splines of the shift drum.
22.Install the shift drum into the transmission housing.
Lift up on the shift shaft rail and move the rail
assembly towards the shift drum to allow the shift fork
ends to be installed into the shift drum.
TRANSMISSION
