6
6.45
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.
16. Torque the locking screw to specification.
Snorkel Locking Screw:
10 ft-lb (14 Nm)
Transmission Assembly
NOTE: The snorkel shaft and pinion shaft must
be installed prior to transmission assembly. The
snorkel shaft cannot be installed after
assembling the transmission.
17. Clean both transmission case halves thoroughly.
Inspect case half mating surfaces for damage.

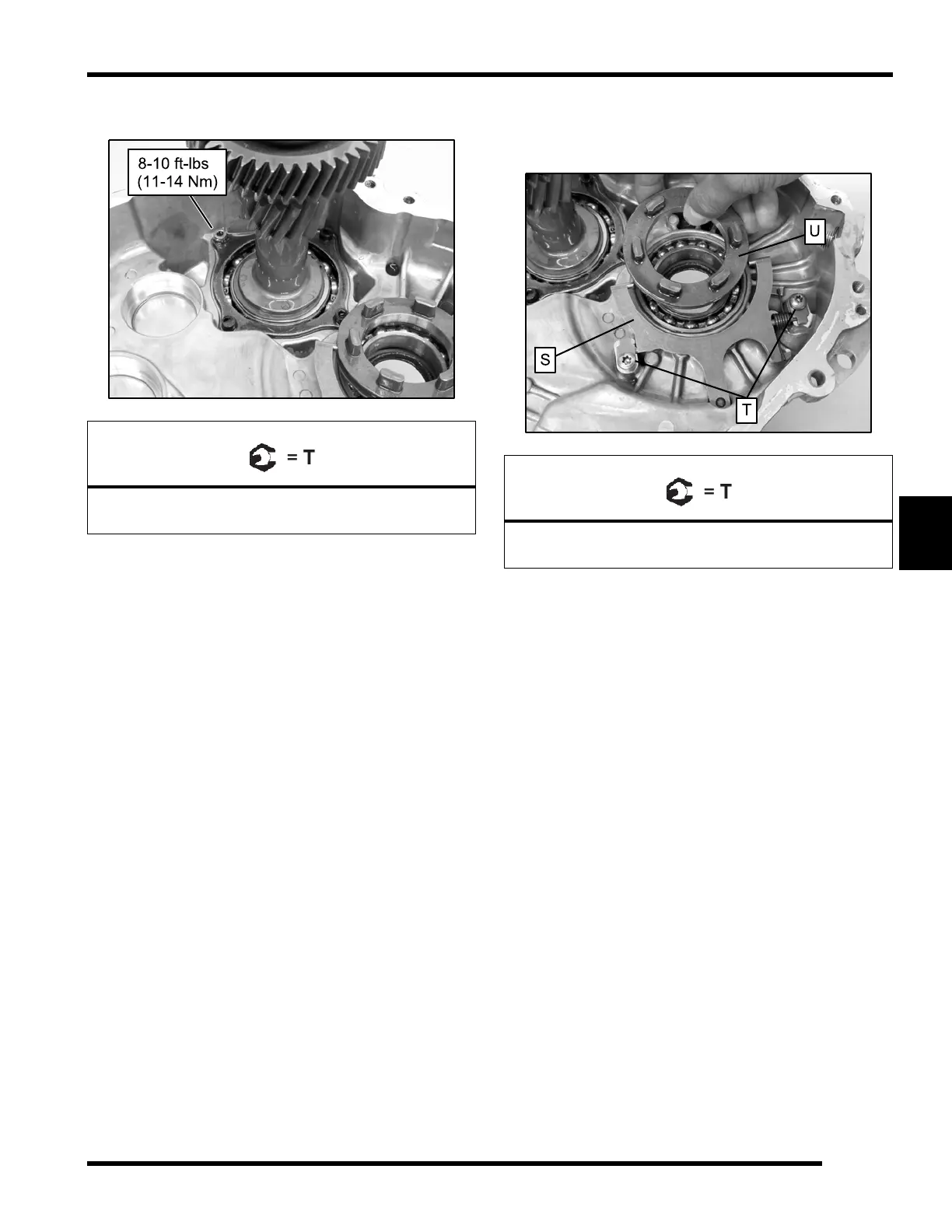

18. Install shift fork (S) and torsion spring into
transmission housing as an assembly. Load spring
as shown in image below
19. Apply Loctite
®
242
™
to two screws (T) and install with
retaining plates over shift fork. Torque to
specification.
Shift Fork Screws:
10 ft-lb (14 Nm)
20. Slide engagement dog (U) onto retaining pins of shift
fork.
TRANSMISSION
