6.46
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

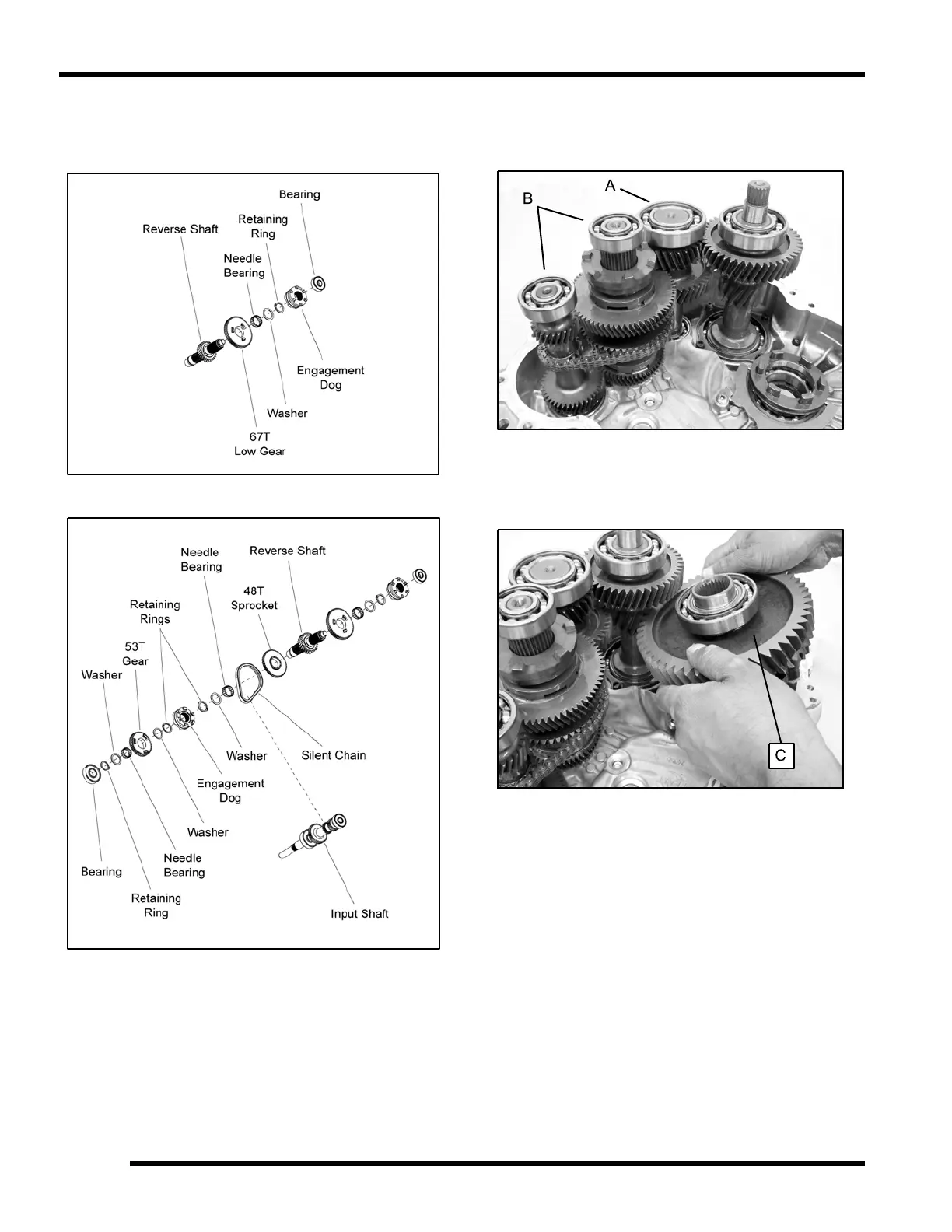

21. Assemble the reverse shaft assembly and input shaft
assembly if previously disassembled (see
illustrations).
22. Install the idler gear shaft assembly (A) and gear
cluster assembly (B) into the transmission housing,
all at the same time.
23. Install the rear output shaft assembly (C). Rotate
output shaft assembly to align slots with engagement
dog. Ensure bearing is fully seated upon assembly.
TRANSMISSION
