Lower Unit
RO

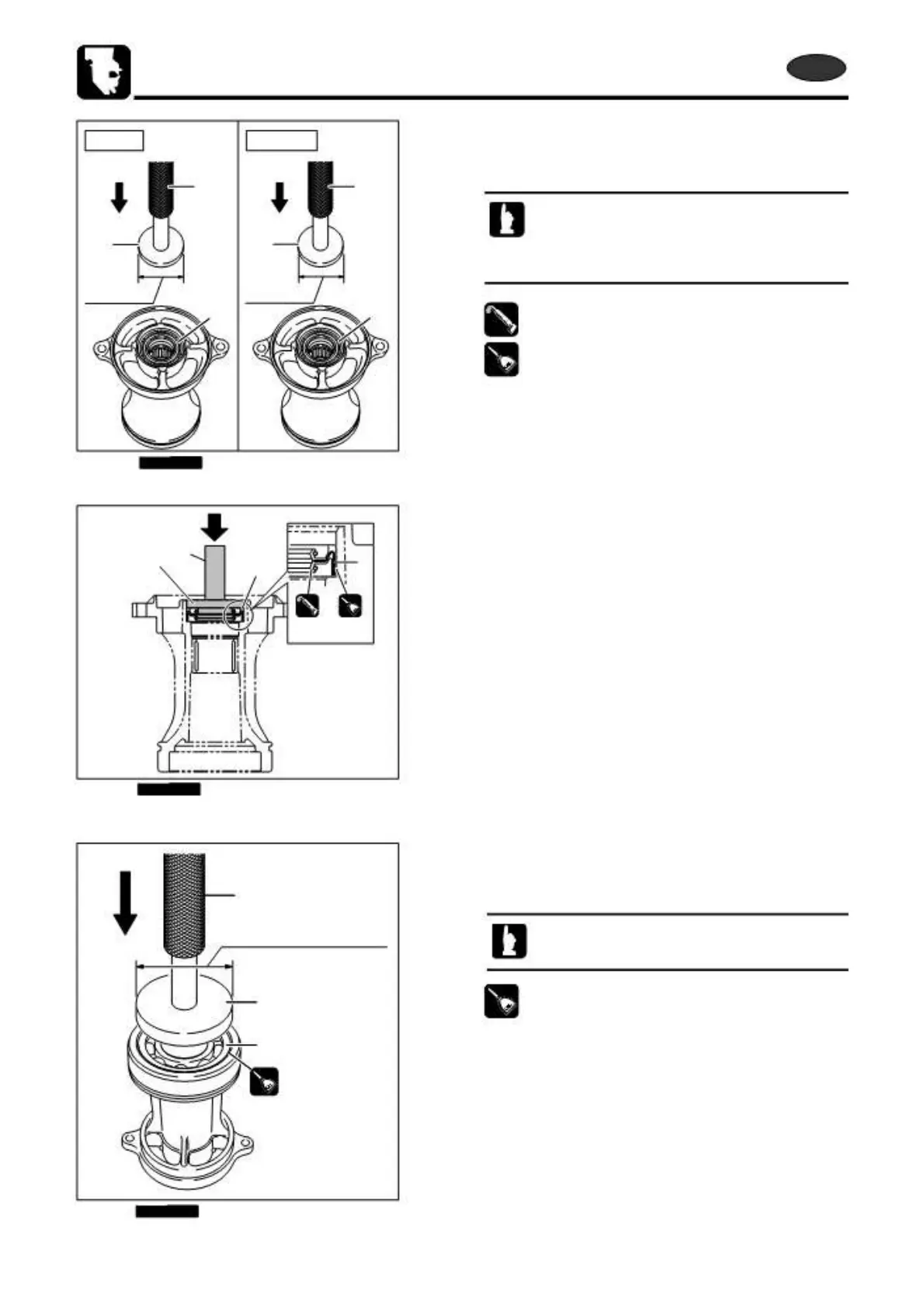

2. Install oil seal 5.
Use a suitable press 6 to install new oil seal to propeller
shaft housing.
1 1
· Install oil seal with the marking facing tool side.
· Clean oil seal installation face and apply gear oil
6 6
before installation.
· Apply grease to lip of oil seal after installing it.
5 5
OBM
OBM
GEAR
GEAR
5 Oil seal Do not reuse.
6
1
5
OBM
OBM
Lip
5
GEAR
GEAR
Circumference
5 Oil Seal
Do not reuse.
3.
1
8
7
GEAR
GEAR
Install bearing 7.
Use a suitable press 8 to install new bearing to propeller
shaft housing.
Clean bearing installation face and apply gear oil
before installation.
GEAR
GEAR
7 Bearing Do not reuse.
6-44
2st 50D2 2011
