SECTION 12: INLET HOOD
61 of 147
Step 12.3.10
Step 12.3.11
For inlet hoods with permanent aluminum mesh filters, continue to Step 12.3.12.
For inlet hoods with birdscreen, no filters, the instructions end here.
For inlet hoods with moisture limiter, continue to Step 12.3.13.

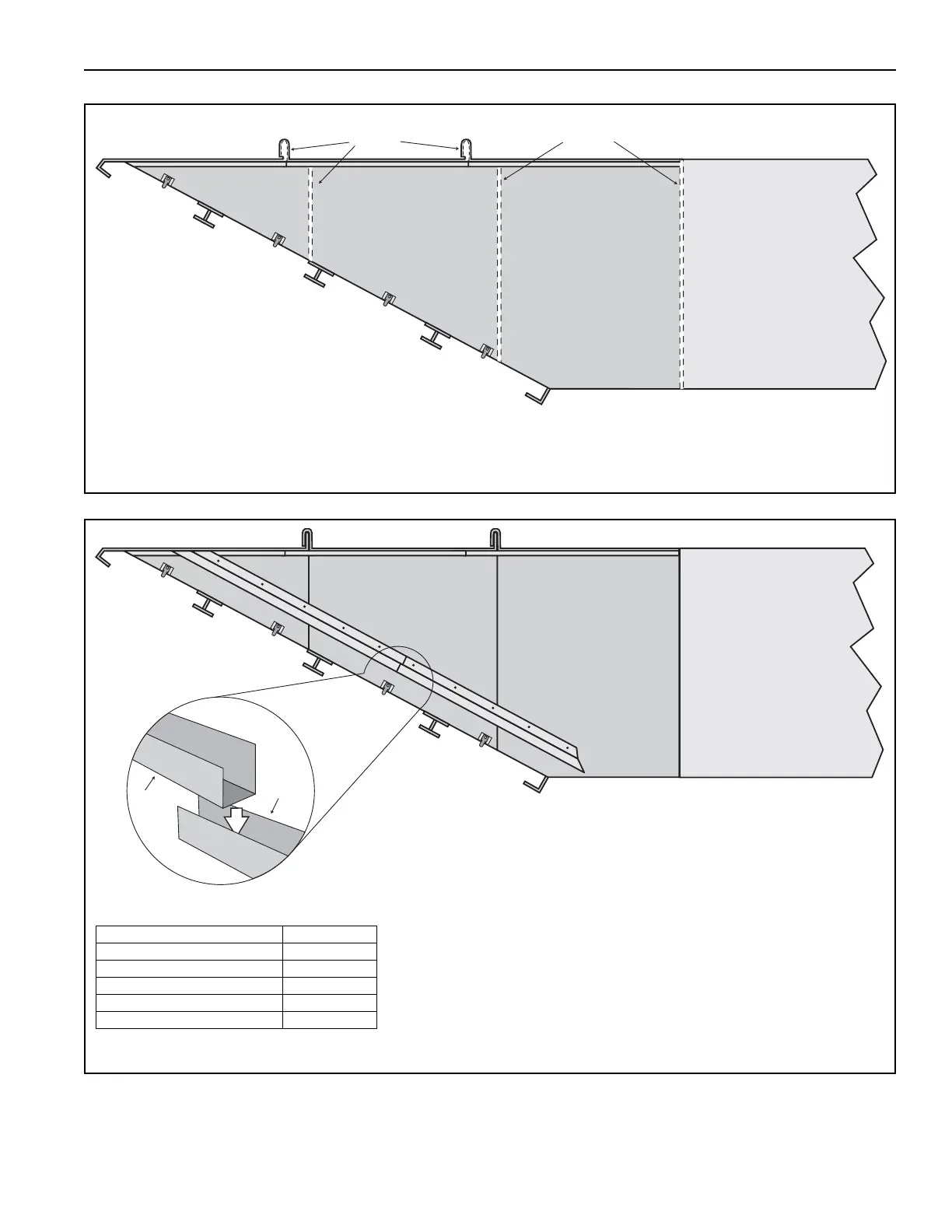

Caulk Caulk
Caulk the seams between the inlet hood and the air handler/filter section and on the open sides of the
J-bends that lock the roof panels together.
NOTE: Double-sided filter rails or filter
clips are not required for inlet hood with
moisture limiter.
Lower
Rail
Upper
Rail
When attaching the drip rail, ensure that the drip rails are
positioned above the filter clips, using the provided holes in
the sidewall panels. Attach drip rail to right side of inlet hood
starting with the lower drip rail using five TEK self-tapping
screws. Attach the upper right side rail by sliding it inside the
lower drip rail where they overlap use five TEK self-tapping
screws. Attach drip rail to left side of inlet hood starting with
the lower drip rail using five TEK self-tapping screws. Attach
the upper right side drip rail by sliding it inside the lower drip
rail where they overlap use five TEK self-tapping screws.
Apply caulk to the drip rails before attaching to the side
panels.
Description Part No.
Drip Rail Upper Right 13305092
Drip Rail Upper Left 13305093
Drip Rail Lower Right 13305094
Drip Rail Lower Left 13305095
TEK Screw 13404
