Chapter 2: Connecting External Equipment (Optional)
Mix DPX3 and DX in a sensor chain:
Any DX sensor package in a chain can be replaced by a DPX3 sensor
package, or vice versa. The total number of sensor packages in this chain
cannot exceed 12.

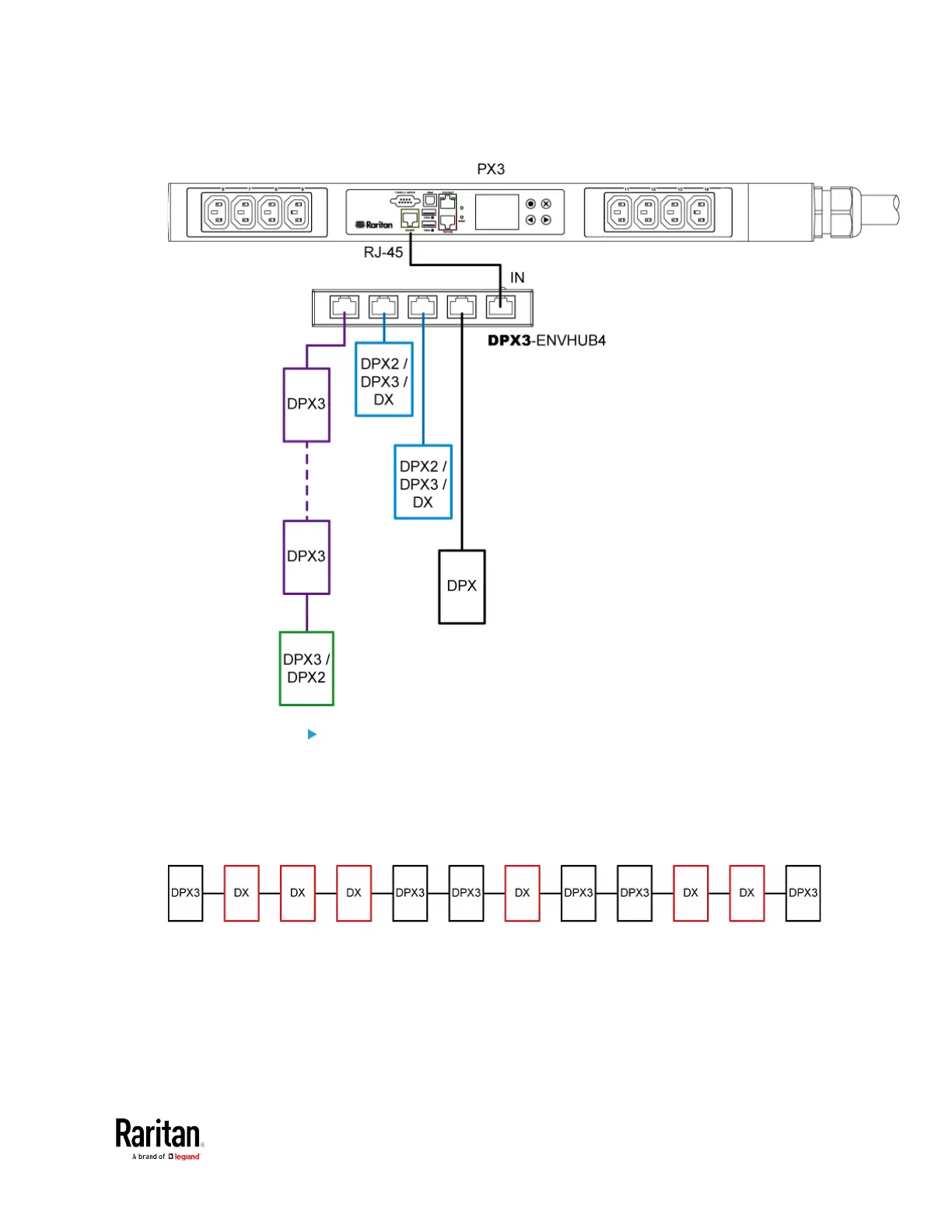

For example, the following diagram shows a sensor chain comprising
both DX and DPX3 sensor packages.
You can add a DPX2 sensor package to the end of such a sensor-mixing
chain if intended. See
Connecting a DPX2 Sensor Package to DPX3
(on
page
56) or
Connecting a DPX2 Sensor Package to DX
(on page 59).
