IMUX 2000 T1/E1
7
April 2007
DS0 CHANNEL MODULE FUNCTIONALITY
Status:
Contact Input/Output
• 16 input
• 16 output
• 8 input / 8 output
Teleprotection Units:
Modular Teleprotection System
• Application: DTT, POTT, PUTT, DCB & DCU
• Four independent bidirectional function
• Solid state or relay output
• Channel delay measurements
• Sequence of events log
• Channel addressing for added protection
• Optional I-RIG B synchronization module
Current Differential
• Pilot wire relay interfaces
• HCB, HCB-1, MBCI & CPD
Analog Telemetry
• Transport of telemetry voltage or current
• Bus voltage remote synchronizing application
Ethernet:
• IP connectivity
• LAN / WAN interconnect
• 10 BaseT Ethernet learning bridge
• Support half or full duplex
• IEEE 802.3
Video:
• NTSC or PAL analog video signal transport
• ITU H.261 compression algorithm
• 1-20 frames/second
• 64 to 1536 Kbps bandwidth
• 352 x 288 resolution
NETWORK MANAGEMENT
• Windows
TM
based PC NMS
• 3 User Level Password
• Access from any node for full system provisioning,
monitoring and diagnostics
• Alarm logging and time stamping
• RS-232 craft interface
• Optional faster NMS communication using a single
64 kbps channel
• Optional 10 BaseT Ethernet Interface
• Optional interface for SNMP manager
• Network password protection for added security
Technical Specifications

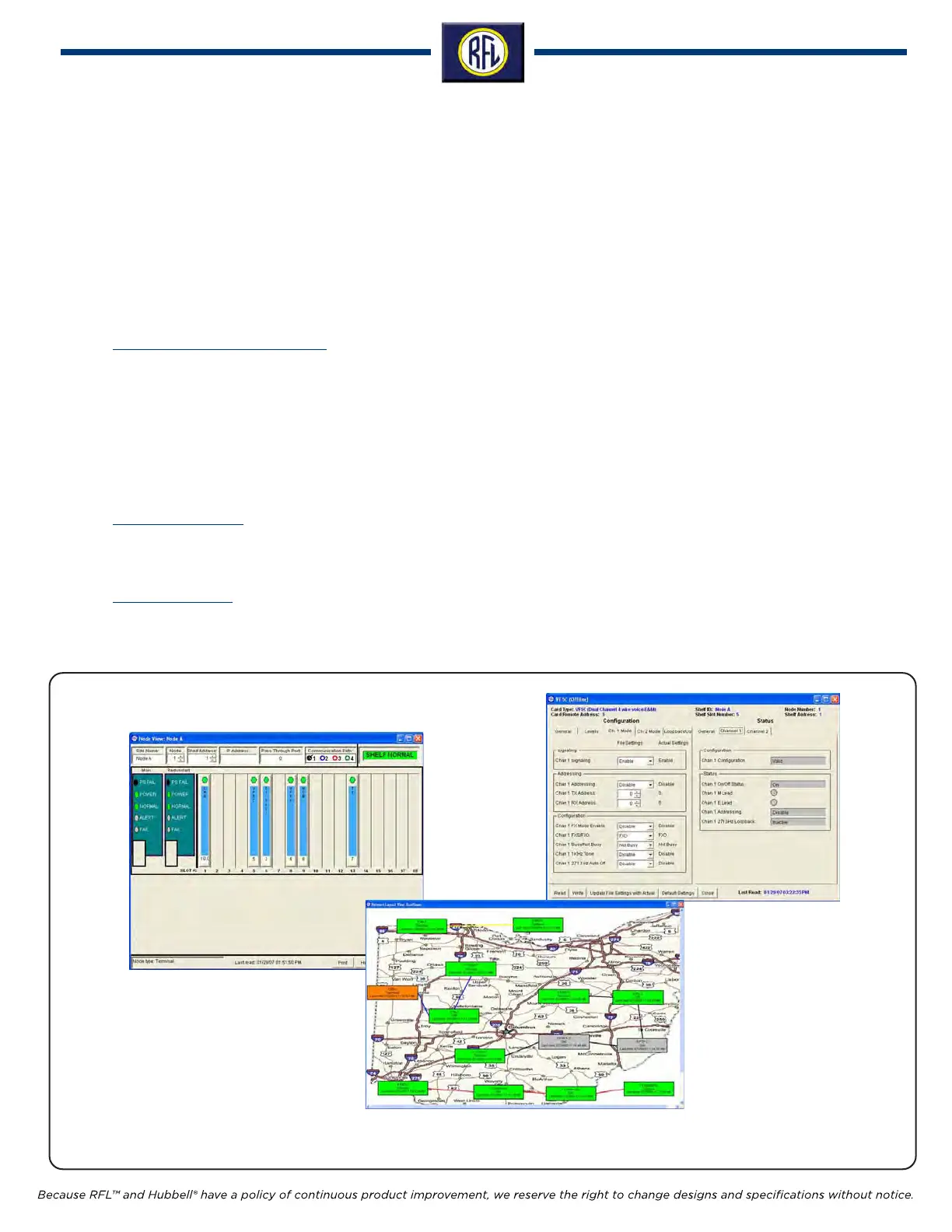

Typical Network Management Screens
