Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

IMUX 2000E1 RFL Electronics Inc.

Pin Function

1 -

2 TXD_OUT

3 RXD_IN

4 -

5 GND

6 -

7 -

8 -

9 -

Pin Function

1 TIMIN-

2 TIMIN+

3 -

4 -

5 TIMOUT-

6 TIMOUT+

REDUNDANT I/O

BOARD (MA-217A)

LIGHT INTERFACE

BOARD (LIB)

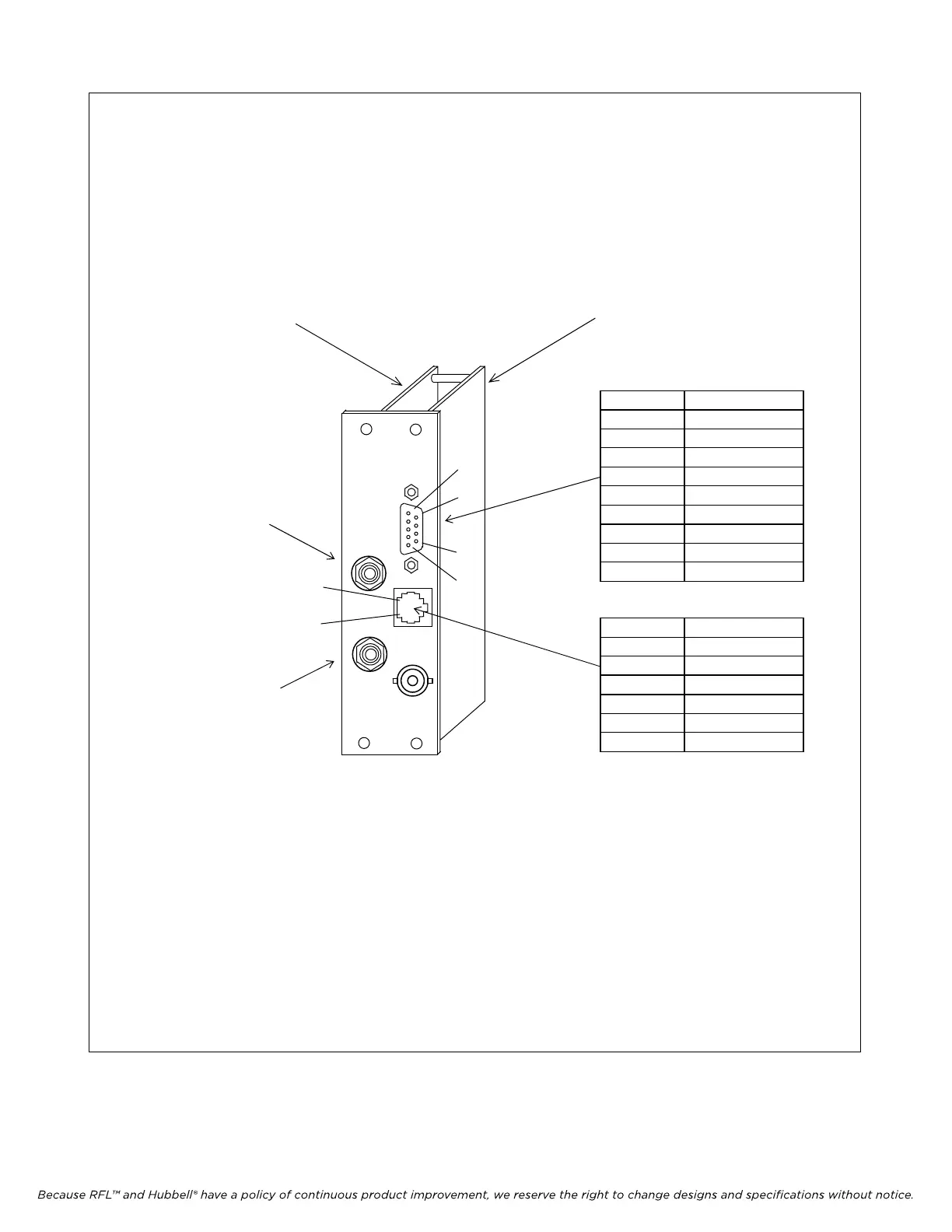

Figure 2-15. Typical CM4 Optical Interface Adapter (OIA), rear panel view

FIBER OPTIC

RECEIVER

(TYPE ST

CONNECTOR)

FIBER OPTIC

TRANSMITTER

(TYPE ST

ONNECTOR)

1300 nm SGL M OI

107455-201

RS-232

EXT TMG

OUT

DB-9

Male

6-position

modular

jack

April 1, 2007 2-25 (973) 334-3100
