Ricoh MP C307

1.Installation
5

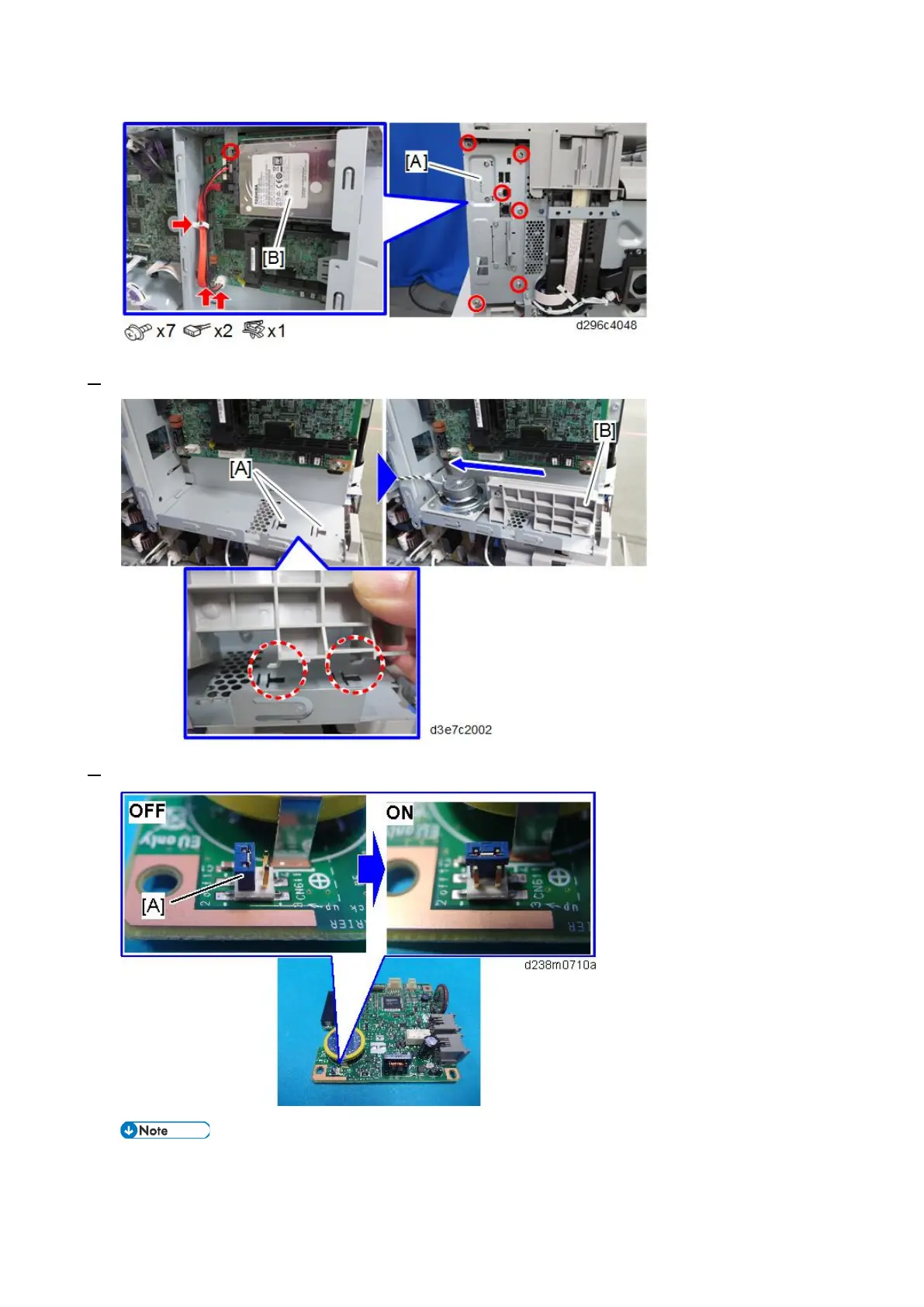

6. Attach the speaker bracket [B] while sliding the tabs into the cutouts [A] in the controller box. (hook x 2)
7. Switch the FCU battery jumper switch [A] to the "ON" position.
If the battery jumper switch is not at the correct position, registering the fax unit will fail.
