Ricoh SP 3710DN - Toner End Sensor

Image Transfer
M0C3/M0C4/M0C5/M0C6/M0C7 4-60 SM
4.8.2 TONER END SENSOR
1. Remove the left cover (Printer models: Left Cover MF models: Left Cover).
2. Remove the drive unit (Drive Unit).

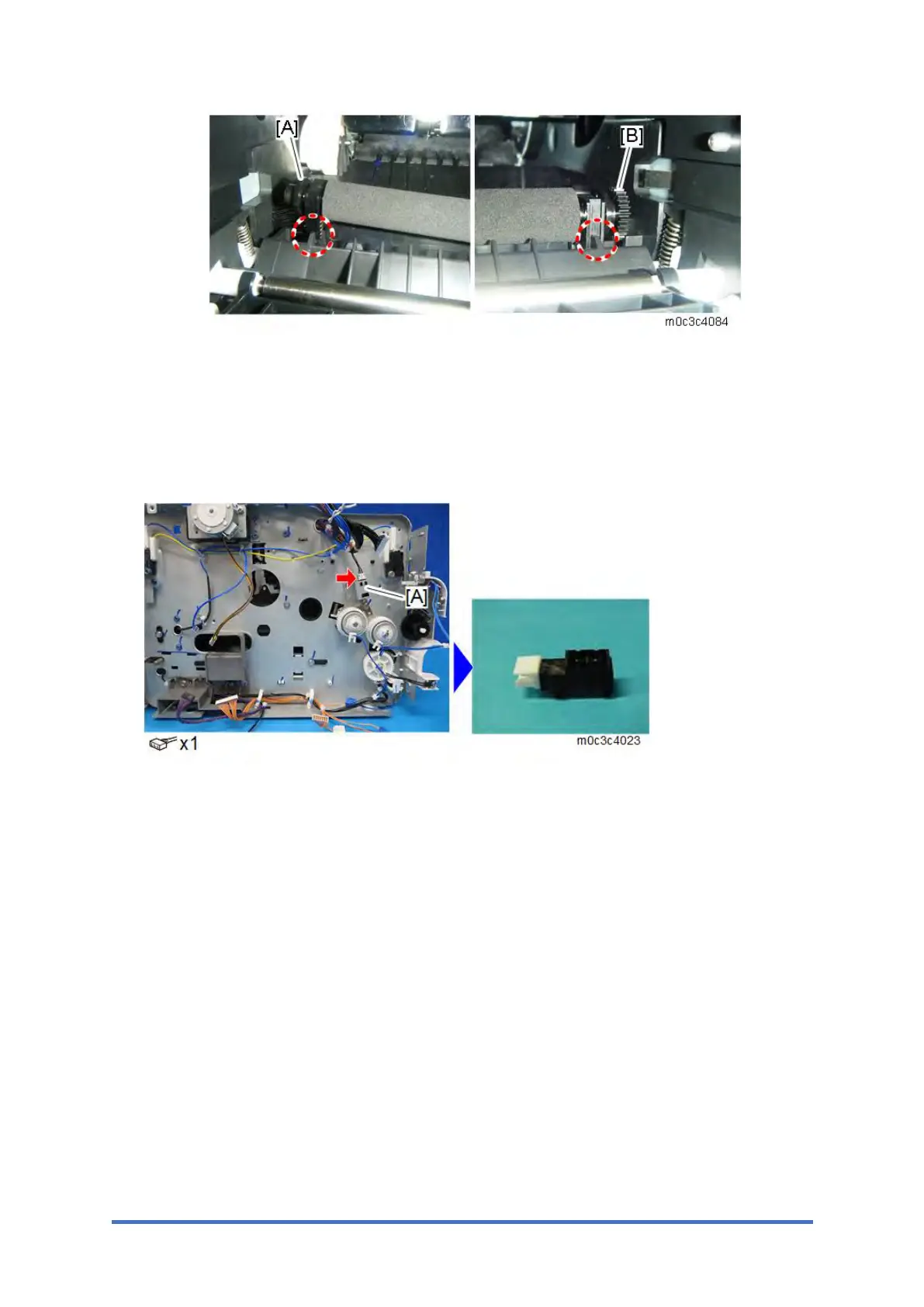

3. Remove the toner end sensor [A].
