Ricoh SP 3710DN - ARDF Rear Cover

ADF/ARDF Unit (Only MF Models)
SM 4-37 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment

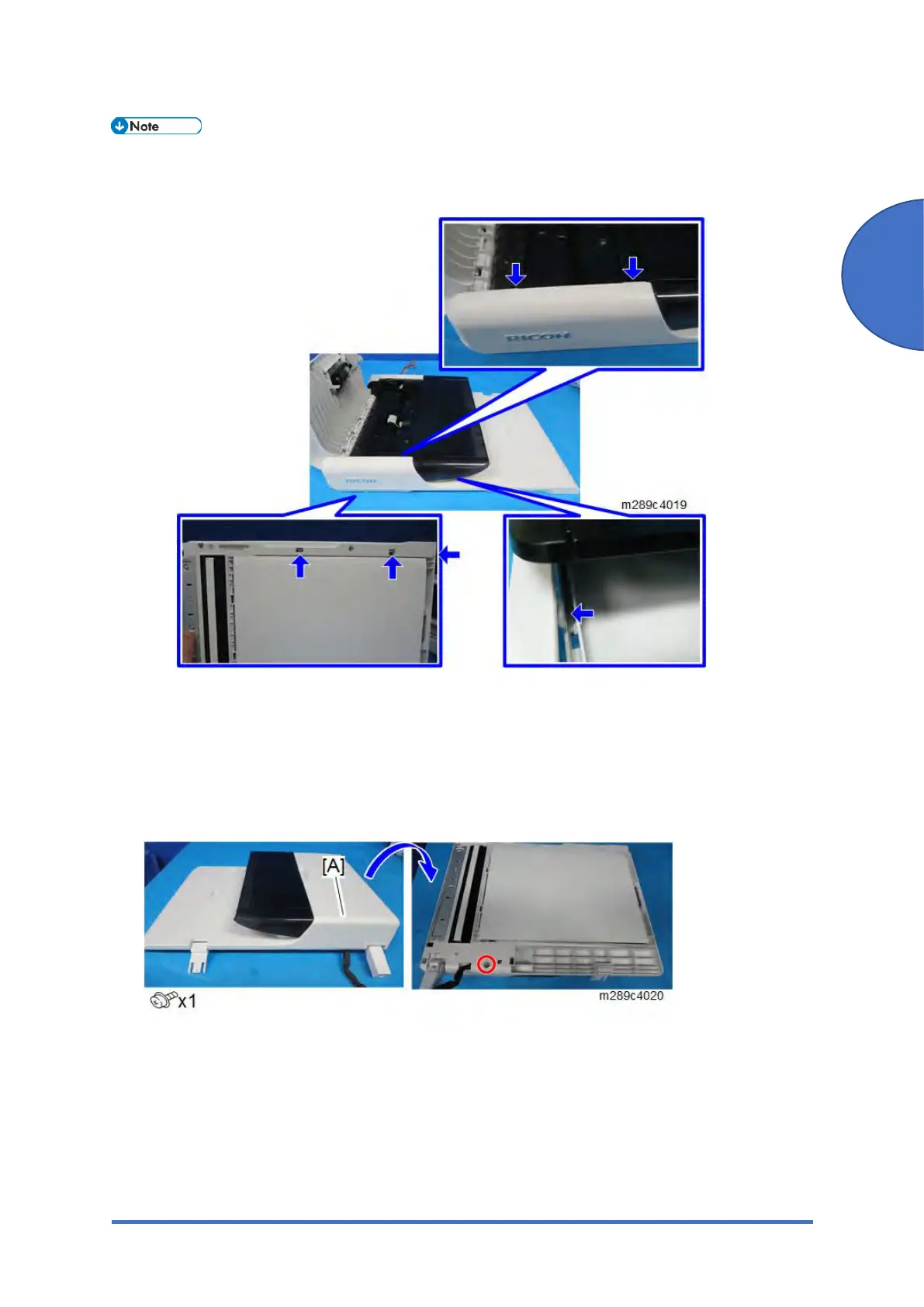

• There are many hooks and tabs inside the ARDF front cover. Before removing the
ARDF front cover, see the photos below.
ARDF Rear Cover
1. Remove the ARDF unit (ARDF Unit).
2. Turn the ARDF unit over.
3. Remove the ARDF rear cover [A].
