Ricoh SP 3710DN - ADF Feed Sensor

ADF/ARDF Unit (Only MF Models)
SM 4-33 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment

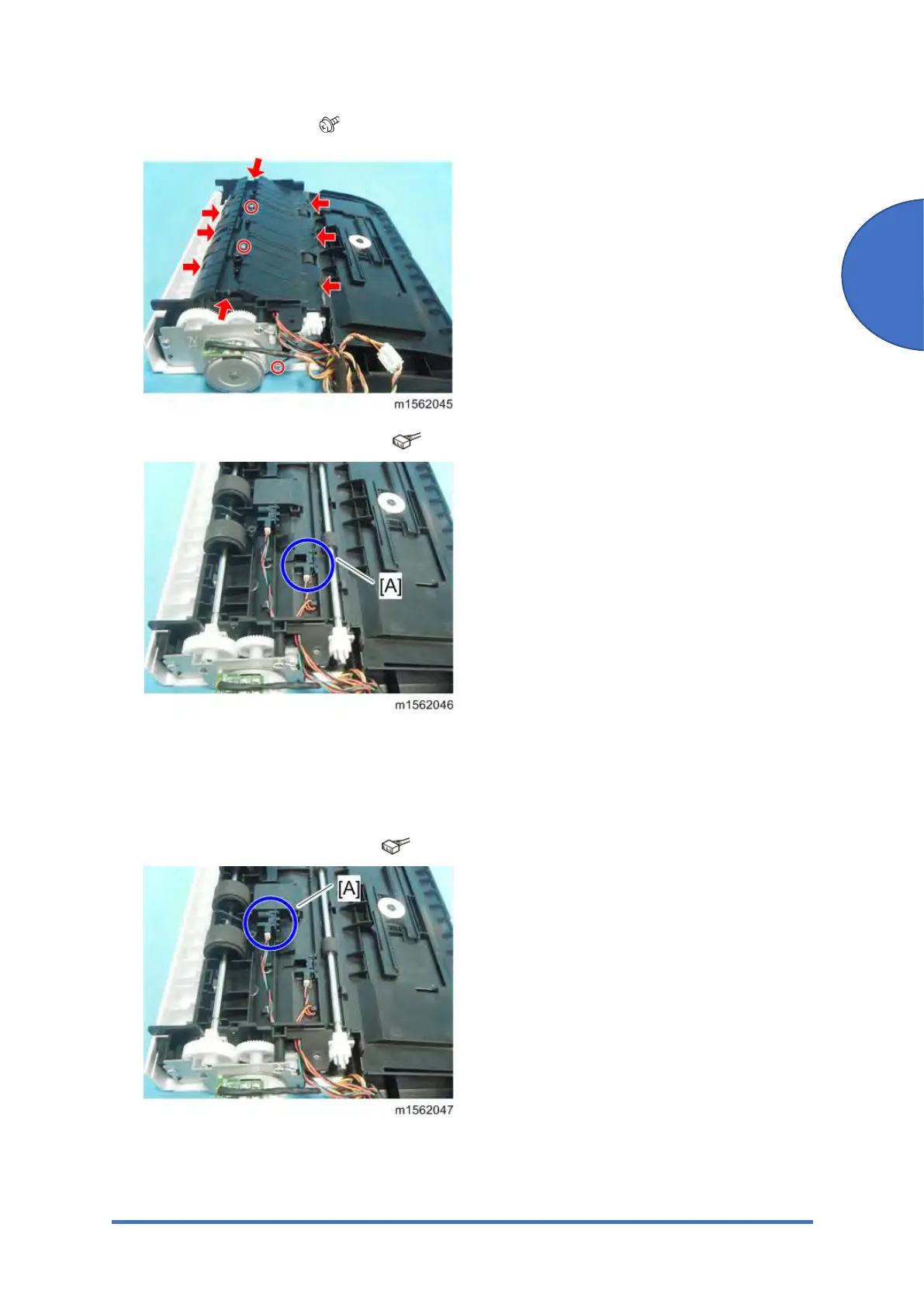

4. Remove the lower guide ( x 3, ground plate, 6 hooks, 2 tabs).
5. Remove the original set sensor [A] (
x 1).
ADF Feed Sensor
1. Remove the ADF drive unit (ADF Motor).
2. Remove the lower guide (Original Set Sensor).
3. Remove the ADF feed sensor [A] (
x 1).
