4.12 ELECTRICAL COMPONENTS
4.12.1 MAIN BOARD
Settings such as network settings and initial settings are registered in the flash memory on the
main board.
When replacing the main board, ask the customer to back up/restore the settings in
Administrator Tools in the WIM.
Backup Setting:
• Back up Network Settings
• Back up Menu Settings
• Back up Scan Destination
• Back up Address Book
Main Board (Printer Models)
1. Remove the left cover (Left Cover).

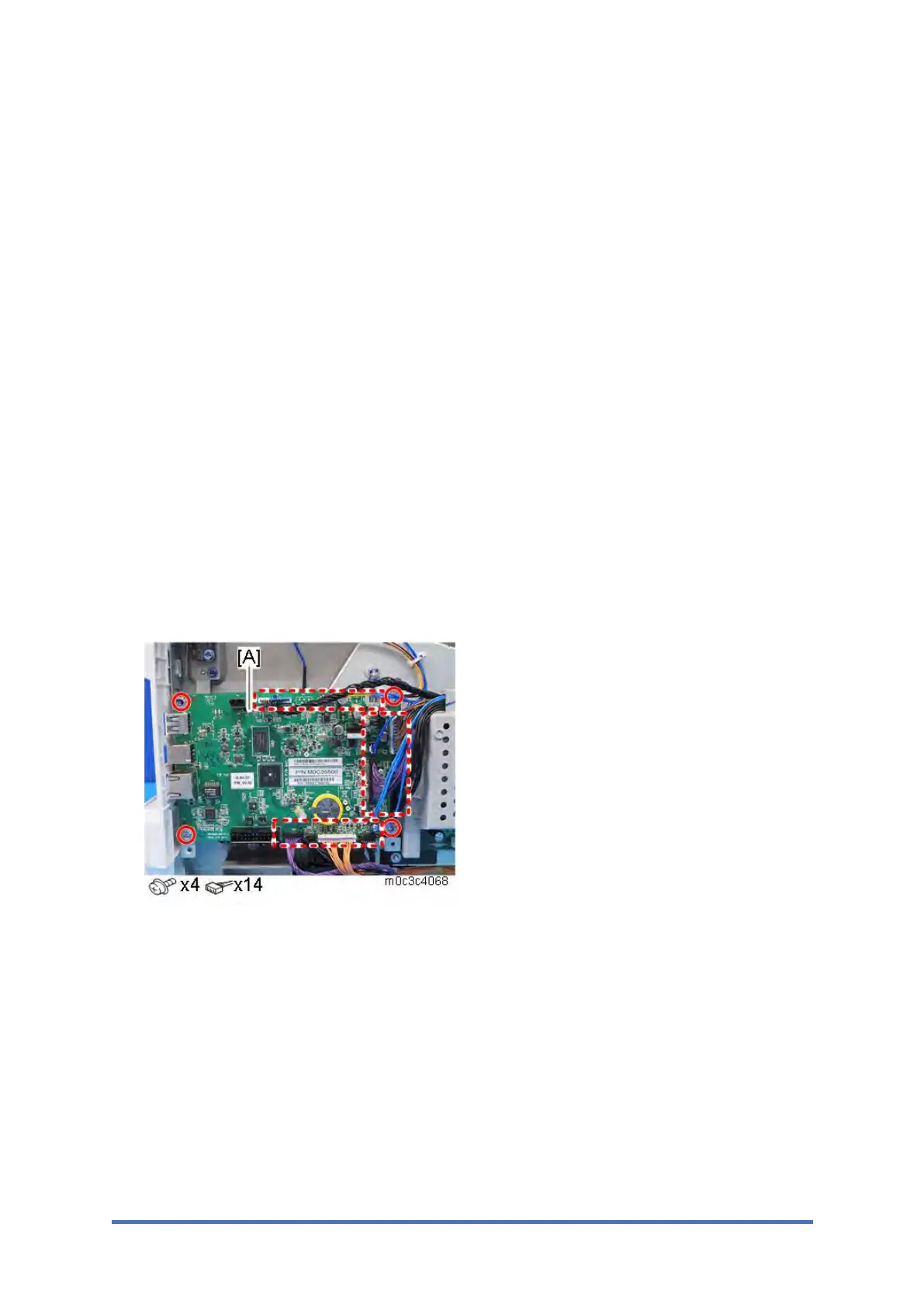

2. Remove the main board [A].
To Next Page
