Paper Feed
SM 4-49 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment

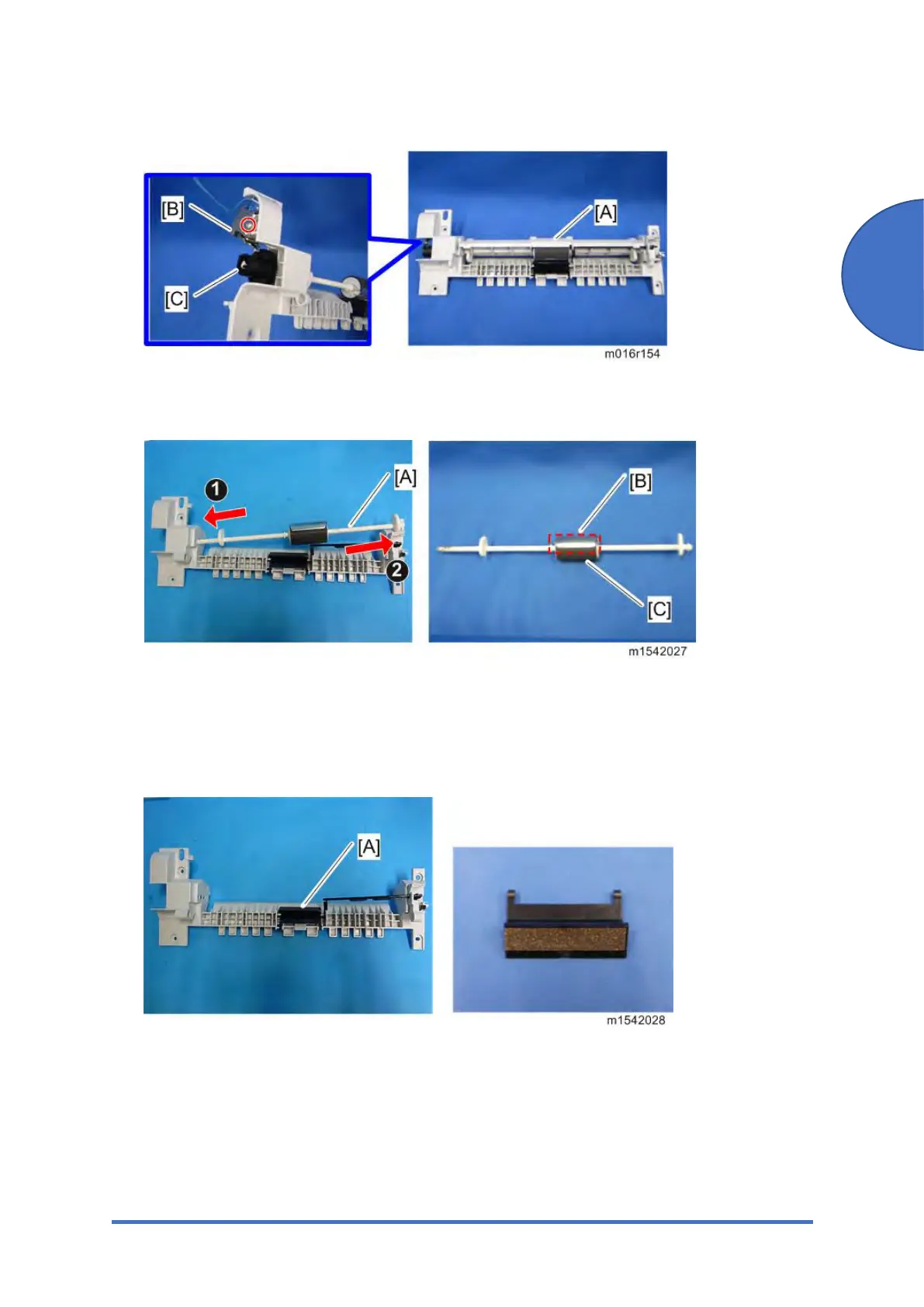

6. Remove the gear [C] (hook).
7. Slide the by-pass feed roller shaft [A] to the left side, and remove it.
8. Remove the metal cover [B] from the by-pass feed roller [C].
4.7.6 BY-PASS FEED ROLLER FRICTION PAD
1. Remove the by-pass feed roller (By-pass Feed Roller).
2. Remove the by-pass feed roller friction pad [A] (2 hooks, spring x 1).
