Ricoh SP 3710DN - Quenching Lamp

Image Transfer
SM 4-61 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment
4.8.3 QUENCHING LAMP
1. Remove the top cover (Printer models: Top Cover MF models: Top Cover).
2. Remove the AIO.

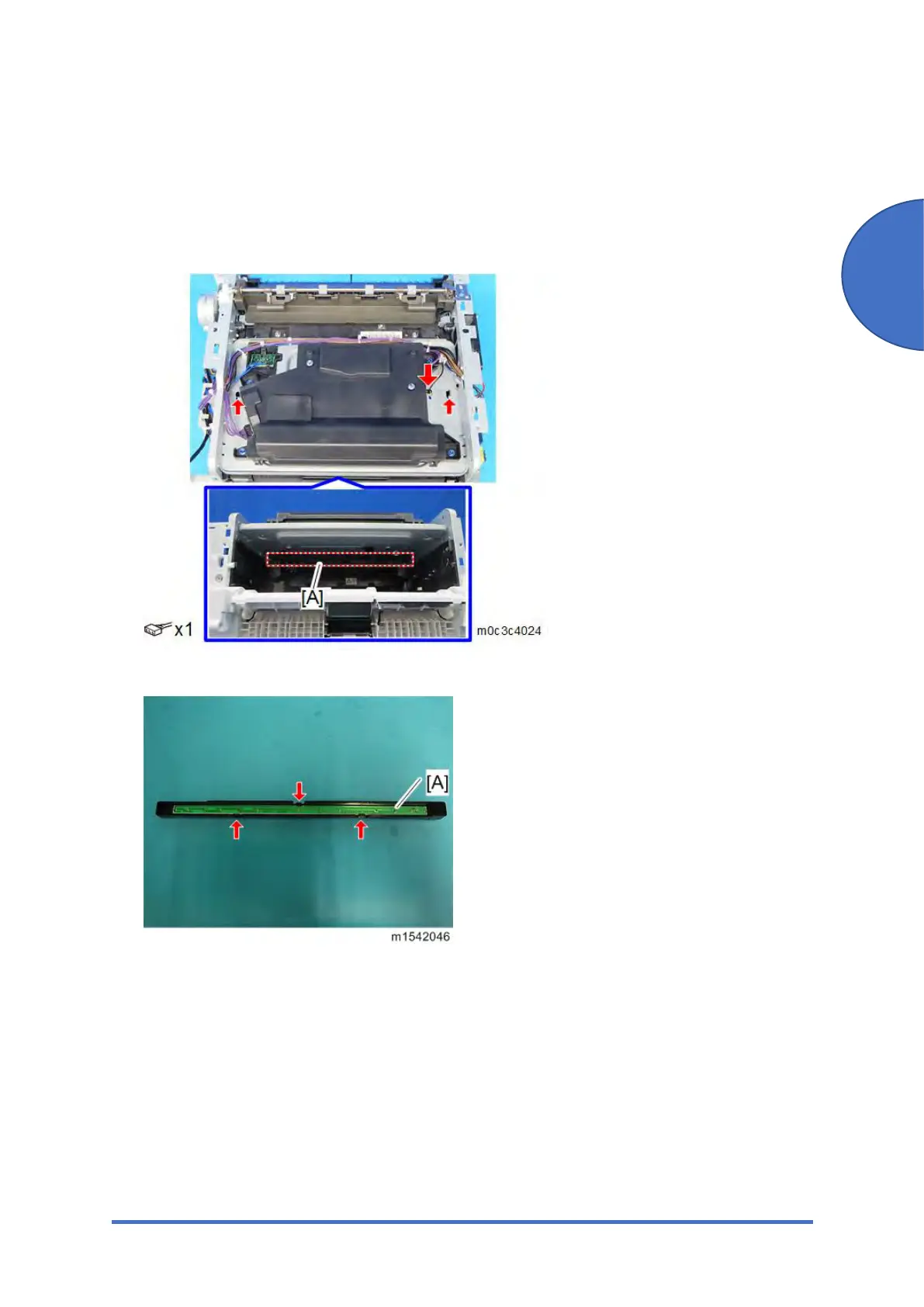

3. Remove the quenching lamp with the case [A] (2 hooks).
4. Remove the quenching lamp [A] from the case (hook x 3).
