Paper Feed
M0C3/M0C4/M0C5/M0C6/M0C7 7-28 SM
7.8 PAPER FEED

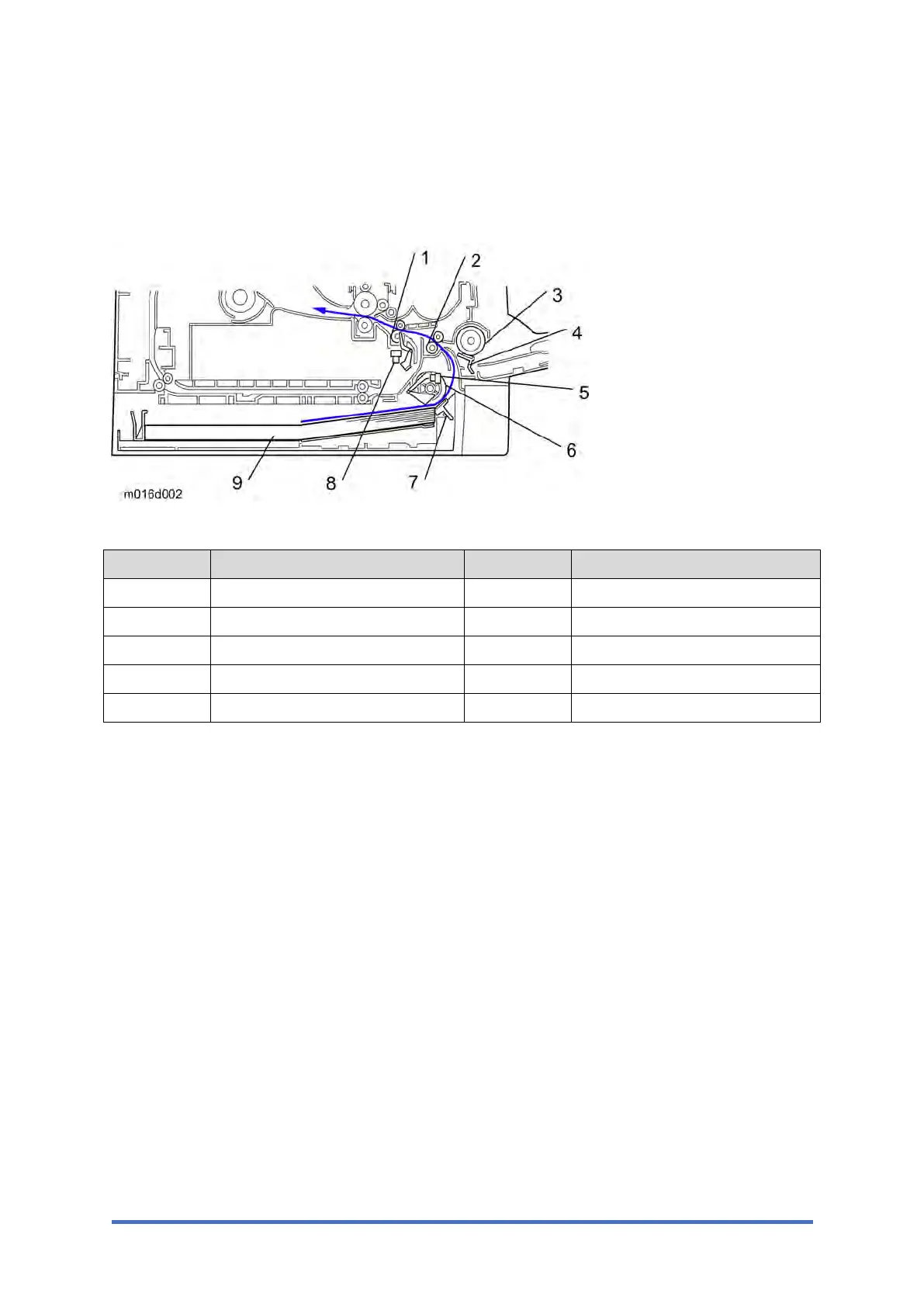

7.8.1 OVERVIEW
Callout Item Callout Item
1. Registration roller 6. Feed roller
2. Relay roller 7. Friction pad
3. By-pass feed roller 8. Registration sensor
4. By-pass friction pad 9. Paper tray
5. Paper end sensor
