Ricoh SP 3710DN - By-Pass Feed Roller; By-Pass Feed Solenoid

Paper Feed
SM 4-47 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment

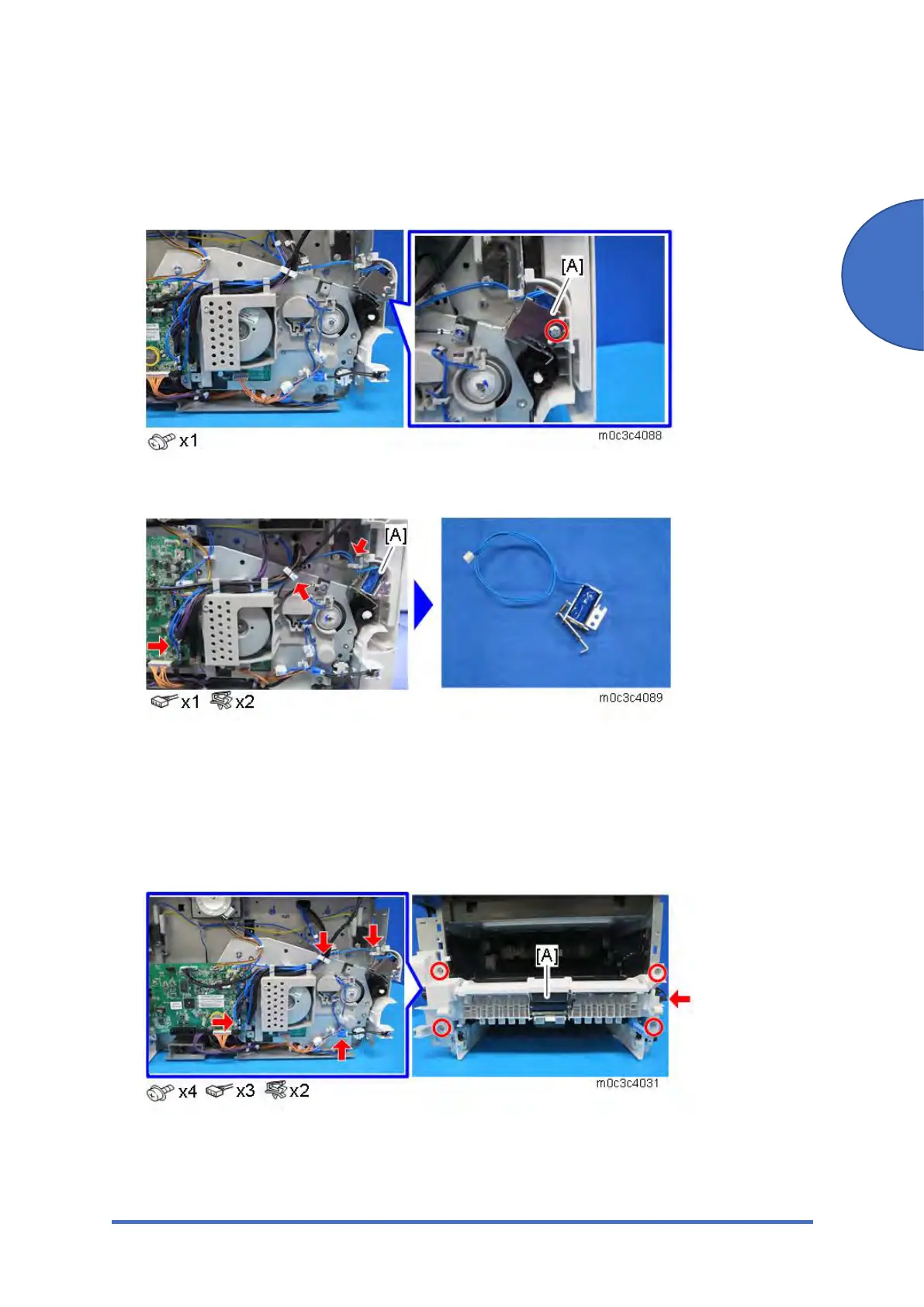

4.7.4 BY-PASS FEED SOLENOID
1. Remove the left cover (Printer models: Left Cover, MF models: Left Cover).
2. Remove the solenoid cover [A].
3. Remove the by-pass feed solenoid [A].
4.7.5 BY-PASS FEED ROLLER
1. Remove the left cover (Printer models: Left Cover, MF models: Left Cover).
2. Remove the right cover (Printer models: Right Cover, MF models: Right Cover).
3. Remove the by-pass lower guide plate [A].
