4.7.2 FRICTION PAD
1. Remove the paper tray unit from the machine before removing the friction pad.

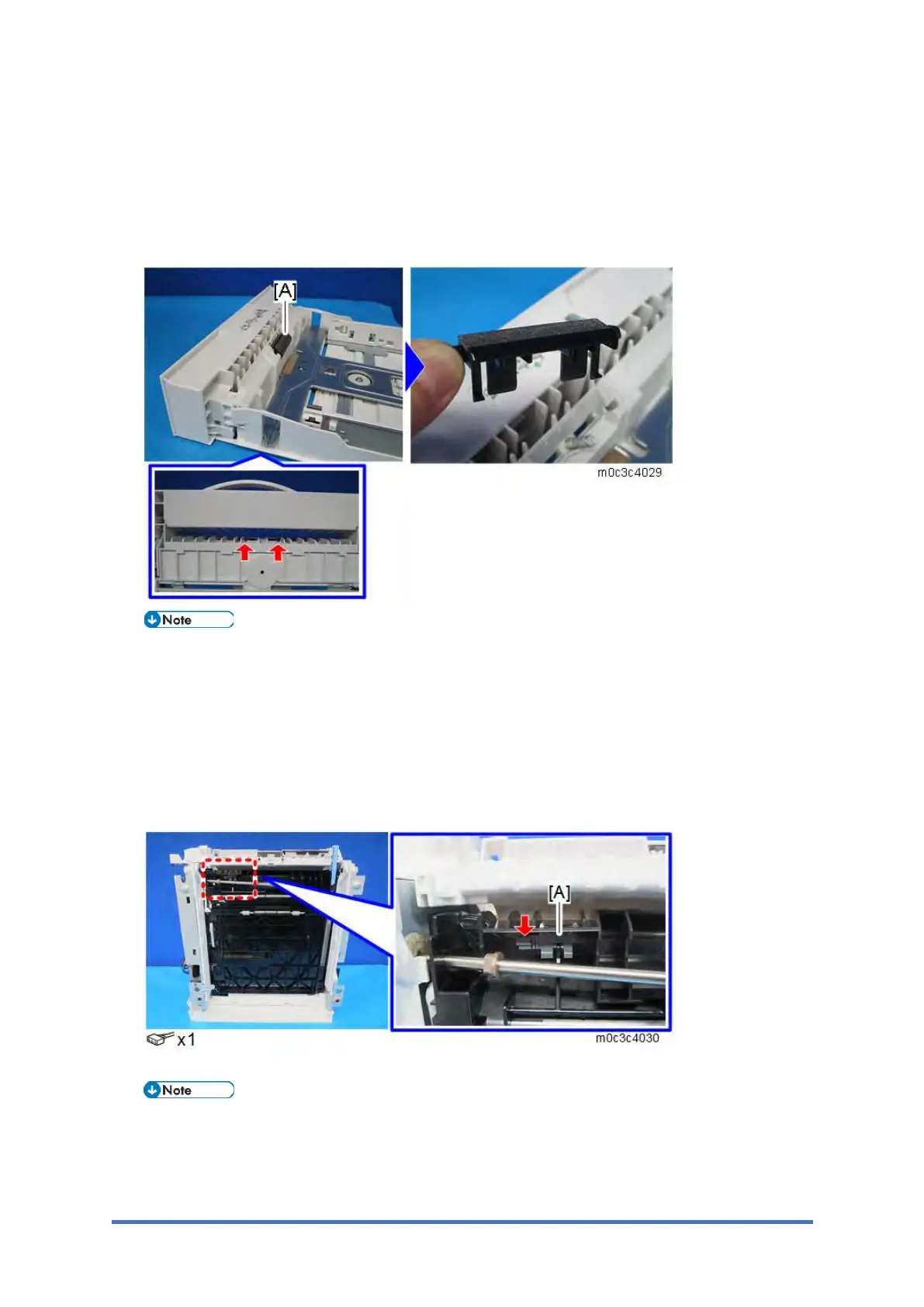

2. Remove the friction pad [A] (2 hooks, spring x 1).
From the bottom side of the paper tray, release the hooks with a flat head screwdriver.
The spring is a different service part from the friction pad. If the spring has no problems, it
can continue to be used.
4.7.3 PAPER END SENSOR
1. Remove the paper feed roller (Paper Feed Roller).
2. Remove the paper end sensor [A].
If it is difficult to remove it, pull out the shaft of the paper feed roller completely before
removing.
