Ricoh SP 3710DN - ADF Top Cover; Original Set Sensor

ADF/ARDF Unit (Only MF Models)
M0C3/M0C4/M0C5/M0C6/M0C7 4-32 SM

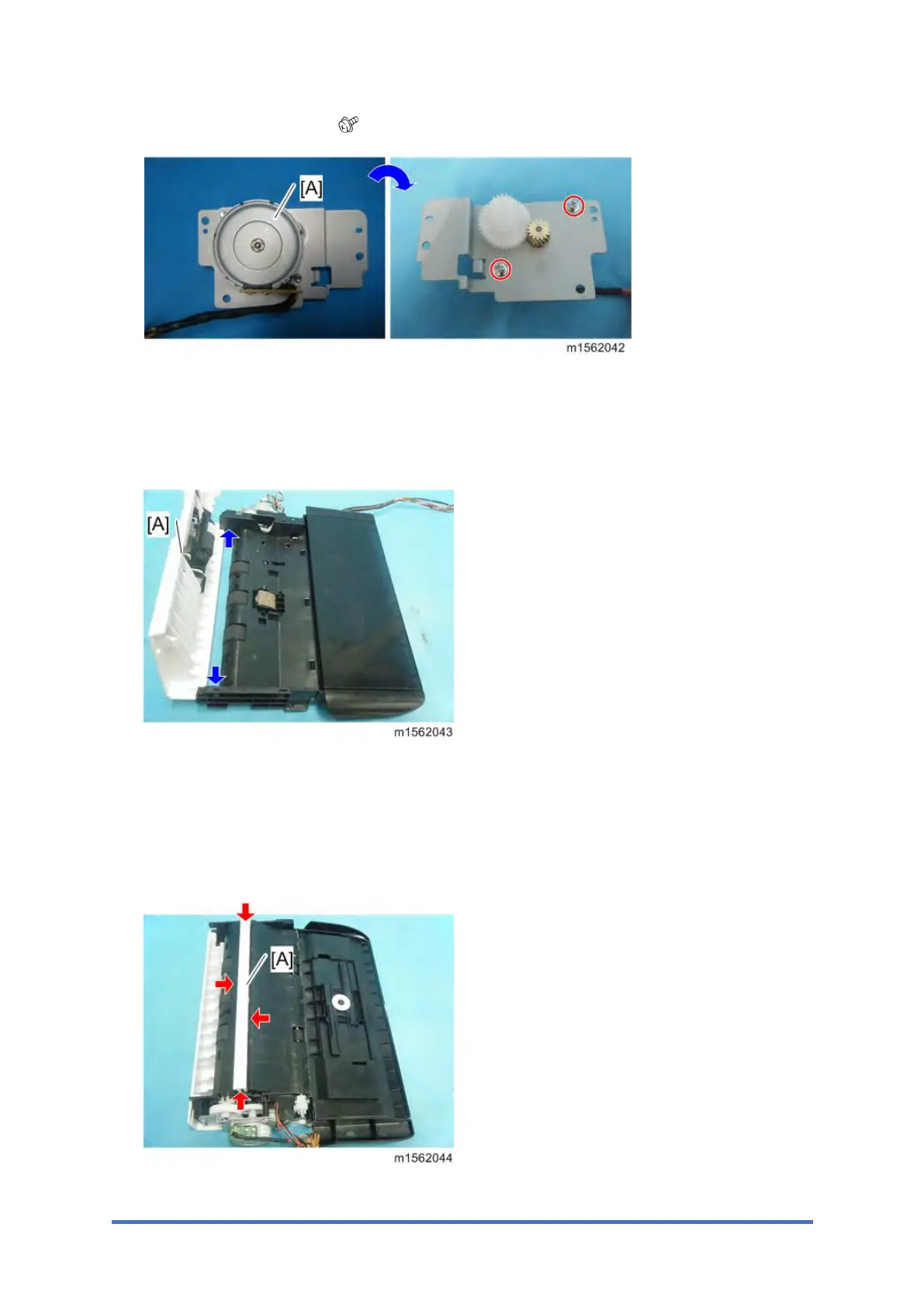

6. Remove the ADF motor [A] ( x 2).
ADF Top Cover
1. Remove the ADF drive unit (ADF Motor).
2. Open the ADF top cover [A] and remove it (two tabs).
Original Set Sensor
1. Remove the ADF drive unit (ADF Motor).
2. Turn the ADF drive unit over.
3. Remove the pressure plate [A] (4 hooks, 2 springs).
