Print Cartridge (AIO)
SM 7-23 M0C3/M0C4/M0C5/M0C6/M0C7
Descriptions
7.7 PRINT CARTRIDGE (AIO)

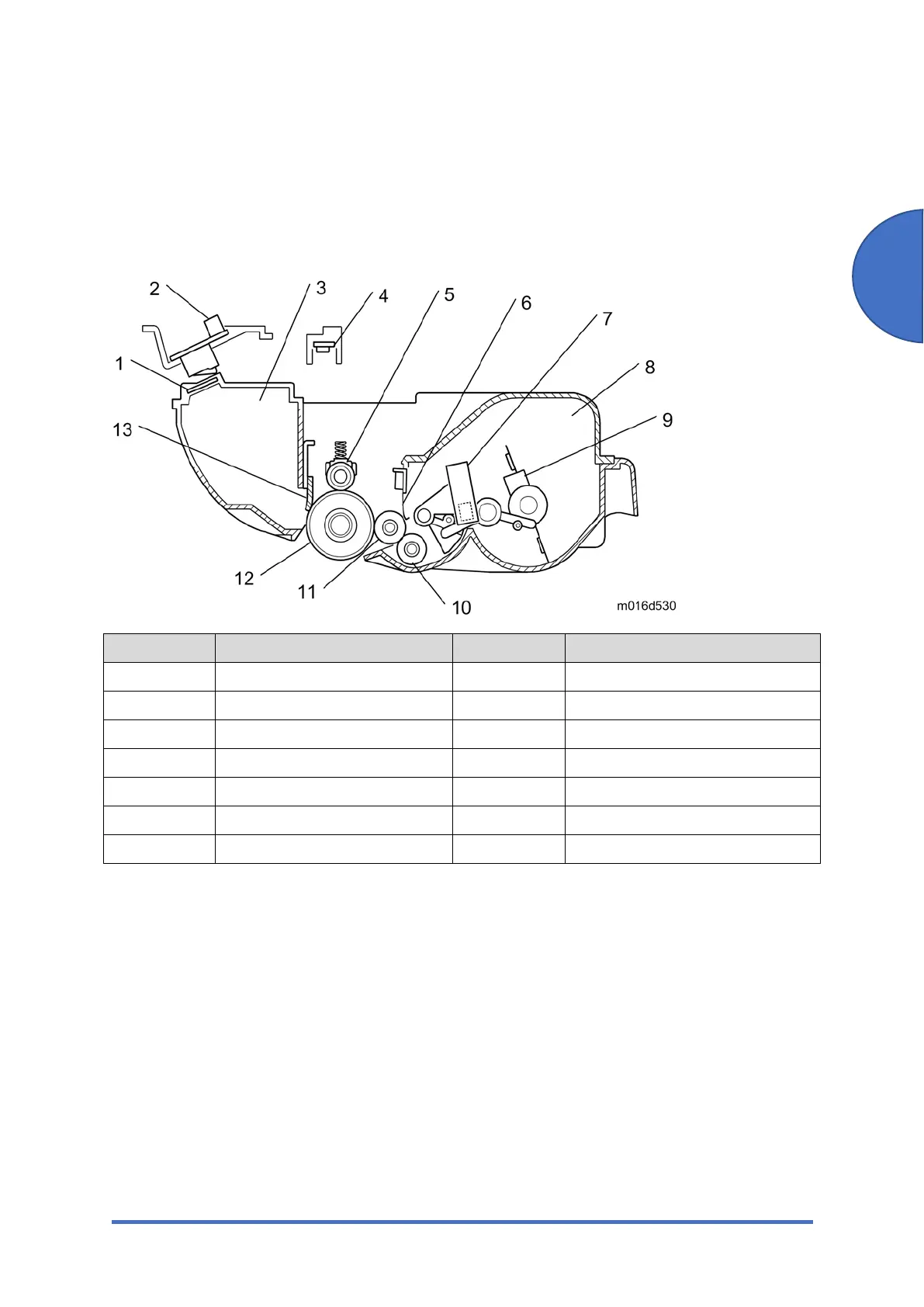

7.7.1 OVERVIEW
This type of cartridge is known as an “All-in One” (AIO) cartridge.
Callout Item Callout Item
1. ID Chip 8. Toner tank
2. ID chip PCB 9. Agitator
3. Waste toner tank 10. Toner supply roller
4. Quenching lamp 11. Development roller
5. Charge roller 12. Drum
6. Scraper 13. Cleaning blade
7. Toner end sensor
