Ricoh SP 3710DN - Drive; Main Motor

Drive
SM 4-71 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment
4.11 DRIVE
4.11.1 MAIN MOTOR
1. Remove the left cover (Printer models: Left Cover, MF models: Left Cover).
2. Remove the main board (Main Board).
3. For MF models, remove the main board bracket (FCU (Only for Fax Models)).

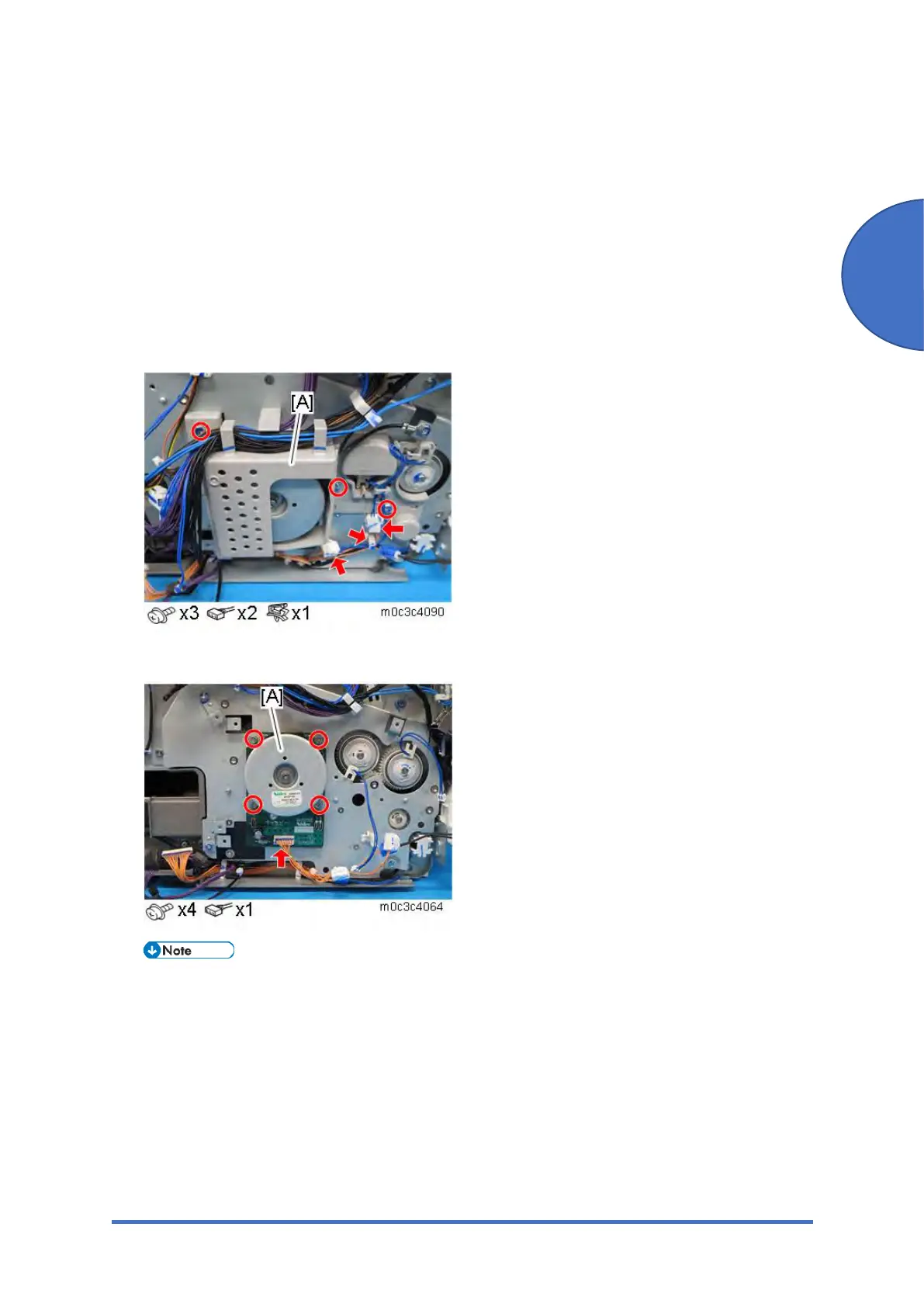

4. Remove the harness guide plate [A].
5. Remove the main motor [A].
When re-installing the harness guide plate, first set the stopper of the relay clutch [A] over
the projection.
