Ricoh SP 3710DN - Registration Roller

Paper Feed
M0C3/M0C4/M0C5/M0C6/M0C7 4-52 SM
4.7.11 REGISTRATION ROLLER
1. Remove the AIO.
2. Only for MF models, remove the scanner unit (Scanner Unit).
3. Remove the top cover (Printer models: Top Cover, MF models: Top Cover).
4. Remove the fusing unit (Fusing Unit).
5. Remove the PSU (PSU).
6. Remove the HVP (HVP).
7. Remove the by-pass lower guide plate (By-pass Feed Roller).
8. Remove the paper feed clutch (Paper Feed Clutch).
9. Remove the relay clutch (Relay Clutch).
10. Remove the registration clutch (Registration Clutch).

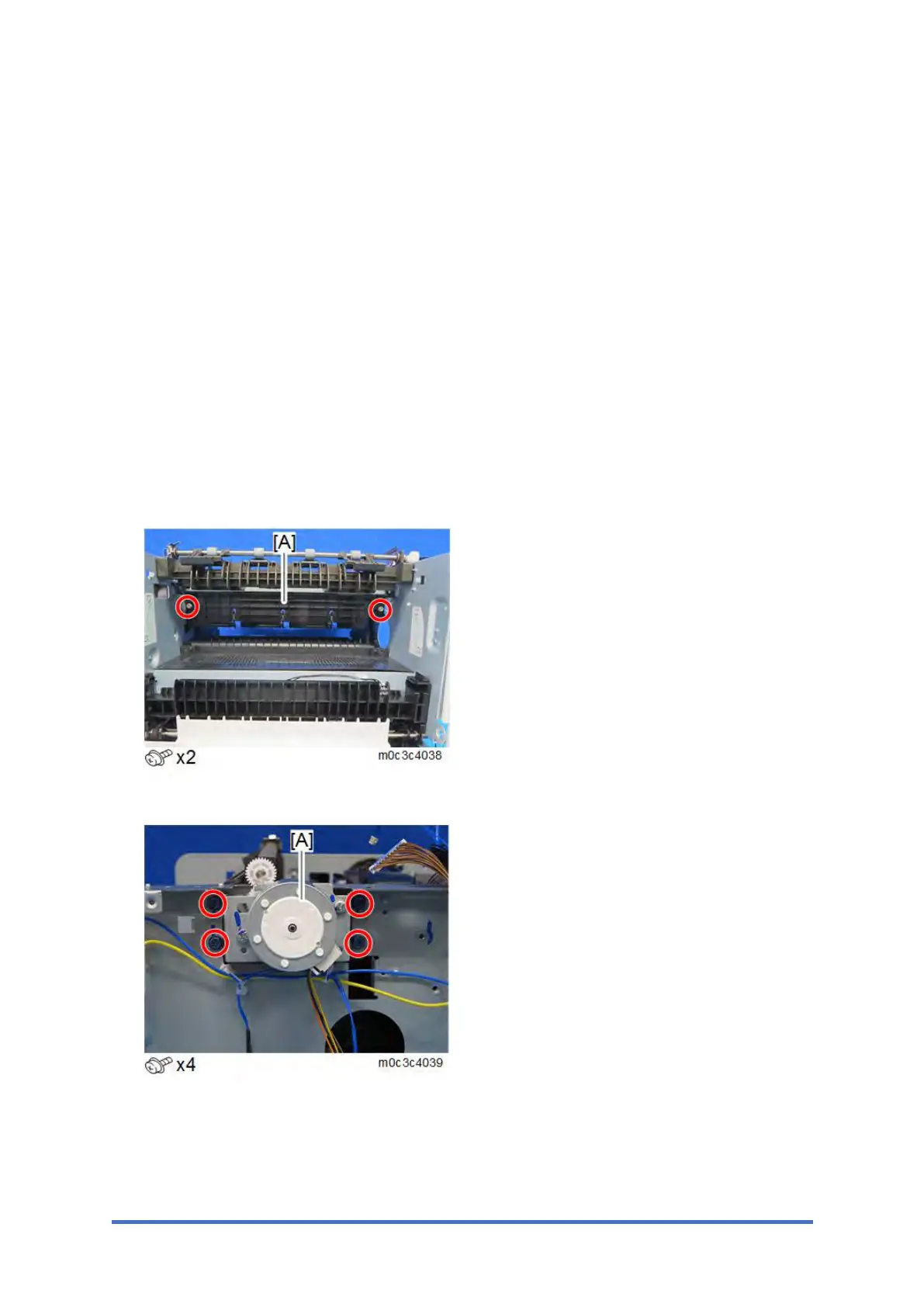

11. Remove the heat insulating plate [A].
12. Remove the duplex motor base [A].
