Ricoh SP 3710DN - ADF Pick-Up Roller; Original Tray

ADF/ARDF Unit (Only MF Models)
SM 4-27 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment
Original Tray

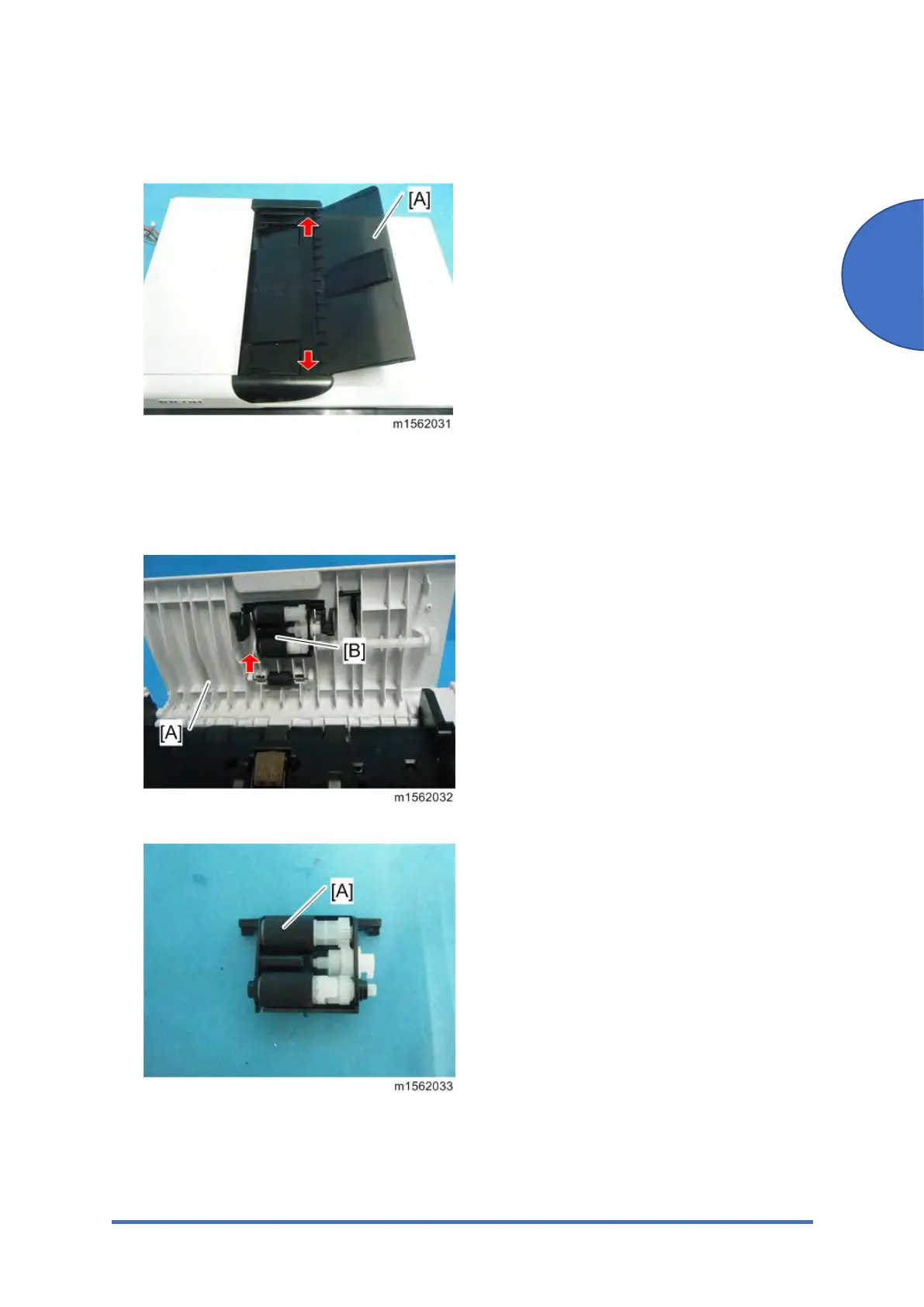

1. Open the original tray [A] and remove it (two tabs).
ADF Pick-Up Roller
1. Open the ADF top cover [A].
2. Remove the ADF feed unit [B] (tab).
3. Remove the ADF pick-up roller [A].
