Ricoh SP 3710DN - Paper Tray Unit Set Switch

Paper Tray Unit Set Switch
SM 9 M534
PAPER FEED UNIT
PB1130
(M534)
1.6 PAPER TRAY UNIT SET SWITCH
1. Remove the paper feed unit (Paper Feed Unit).

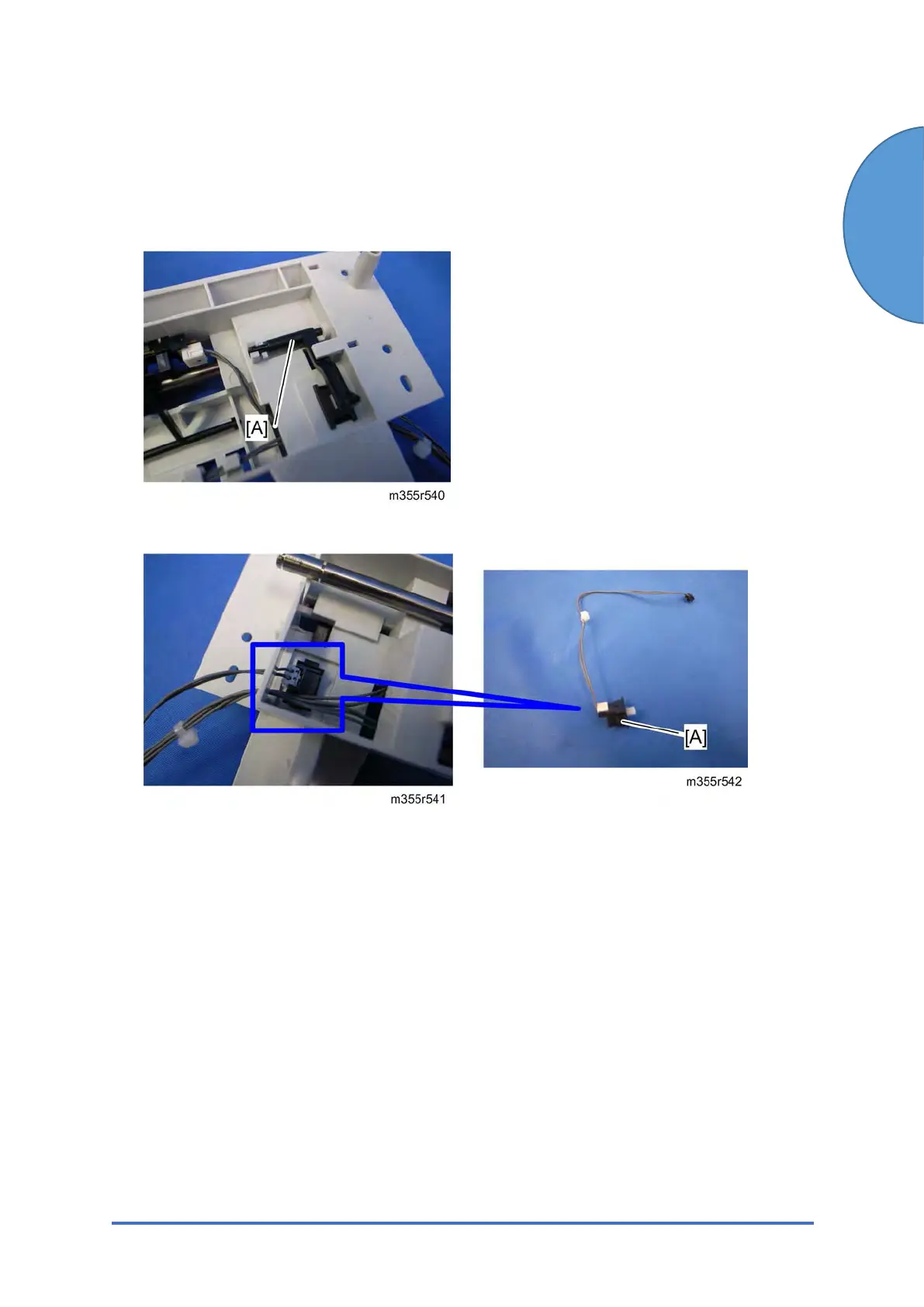

2. Remove the feeler [A].
3. Remove the paper tray unit set switch [A] (hook x2).
