Drive
SM 4-75 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment
4.11.3 DUPLEX MOTOR
1. Remove the top cover (Printer models: Top Cover MF models: Top Cover).

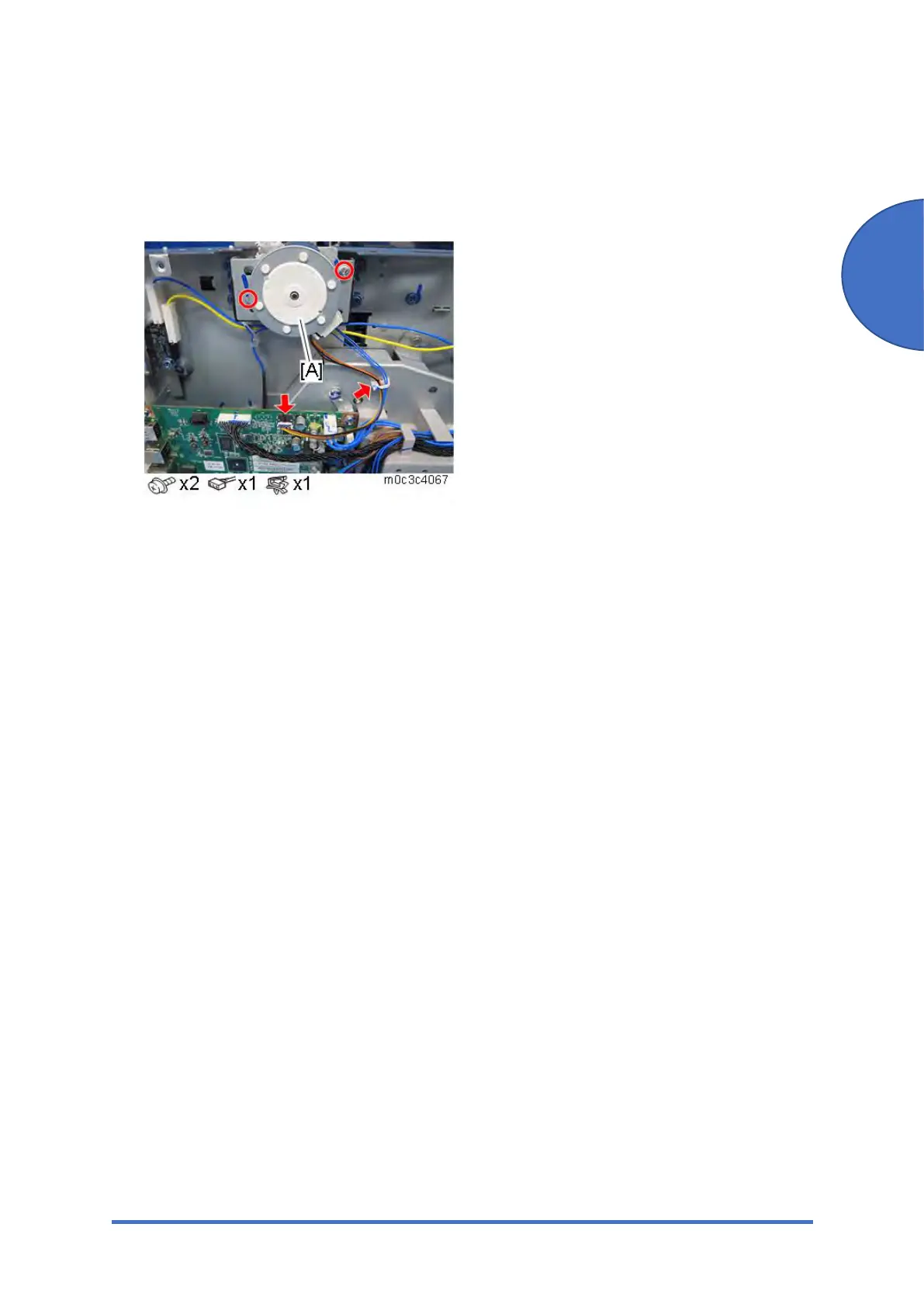

2. Remove the duplex motor [A].
