Paper Feed
M0C3/M0C4/M0C5/M0C6/M0C7 7-30 SM
When the paper tray is inserted into the machine, a projection on the copier frame pushes the
latch release arm (on the bottom part of the paper tray), enabling the compressed spring to lift
the bottom plate.
Paper End Detection

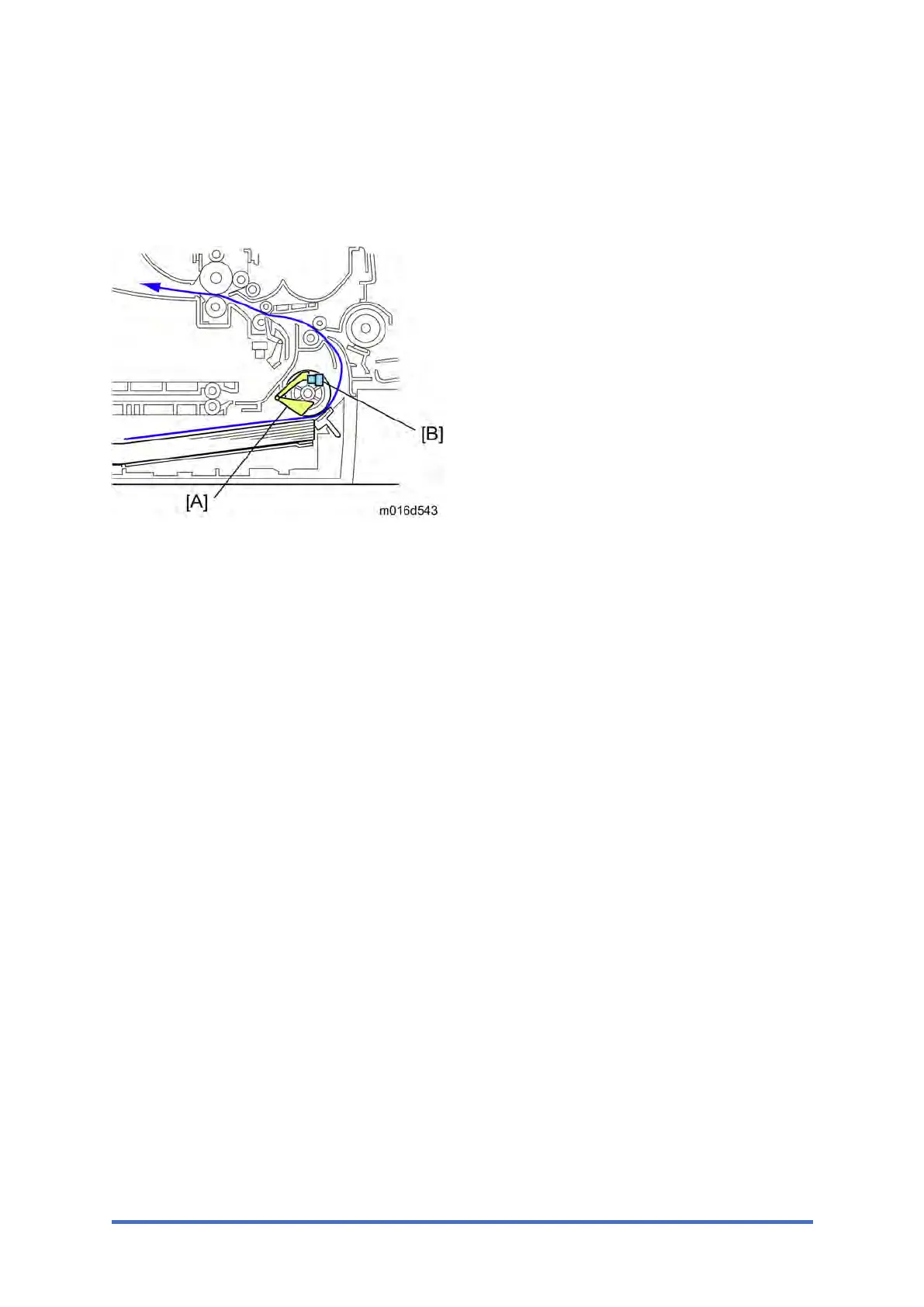

When there is no paper in the tray, the feeler [A] falls into the cutout in the bottom plate, and the
paper end sensor [B] comes on.
