Exterior Covers (Printer Models)
SM 4-7 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment

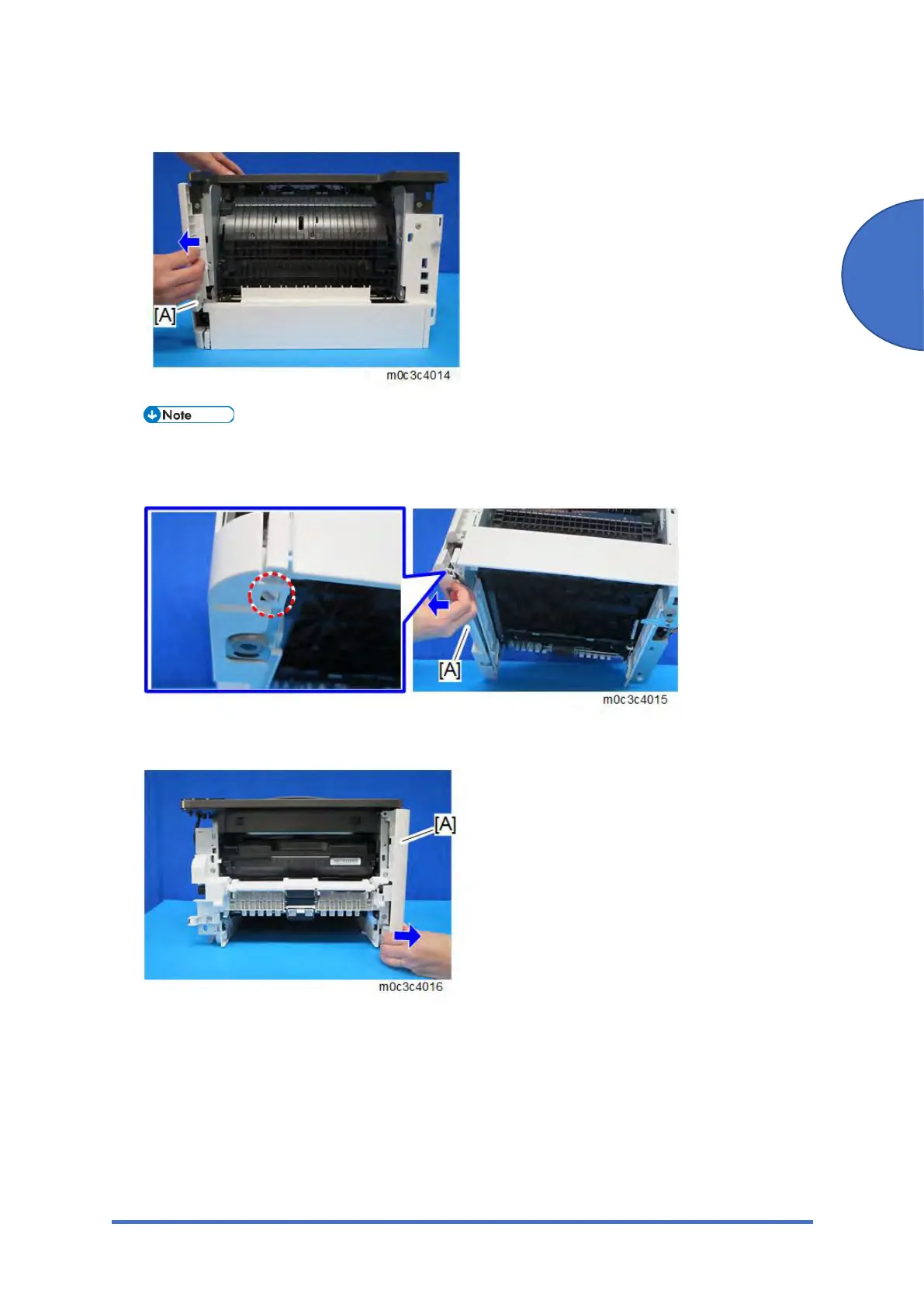

4. Pull the rear part of the right cover [A] to release the hook.
The outside of the cover has marks indicating the position of the hooks.
5. Lift the machine, and release the hook of the right cover [A].
6. Pull the front bottom part of the right cover [A] to release the hook.
