2.2 Basic configuration
A unit consists of at least the following components:

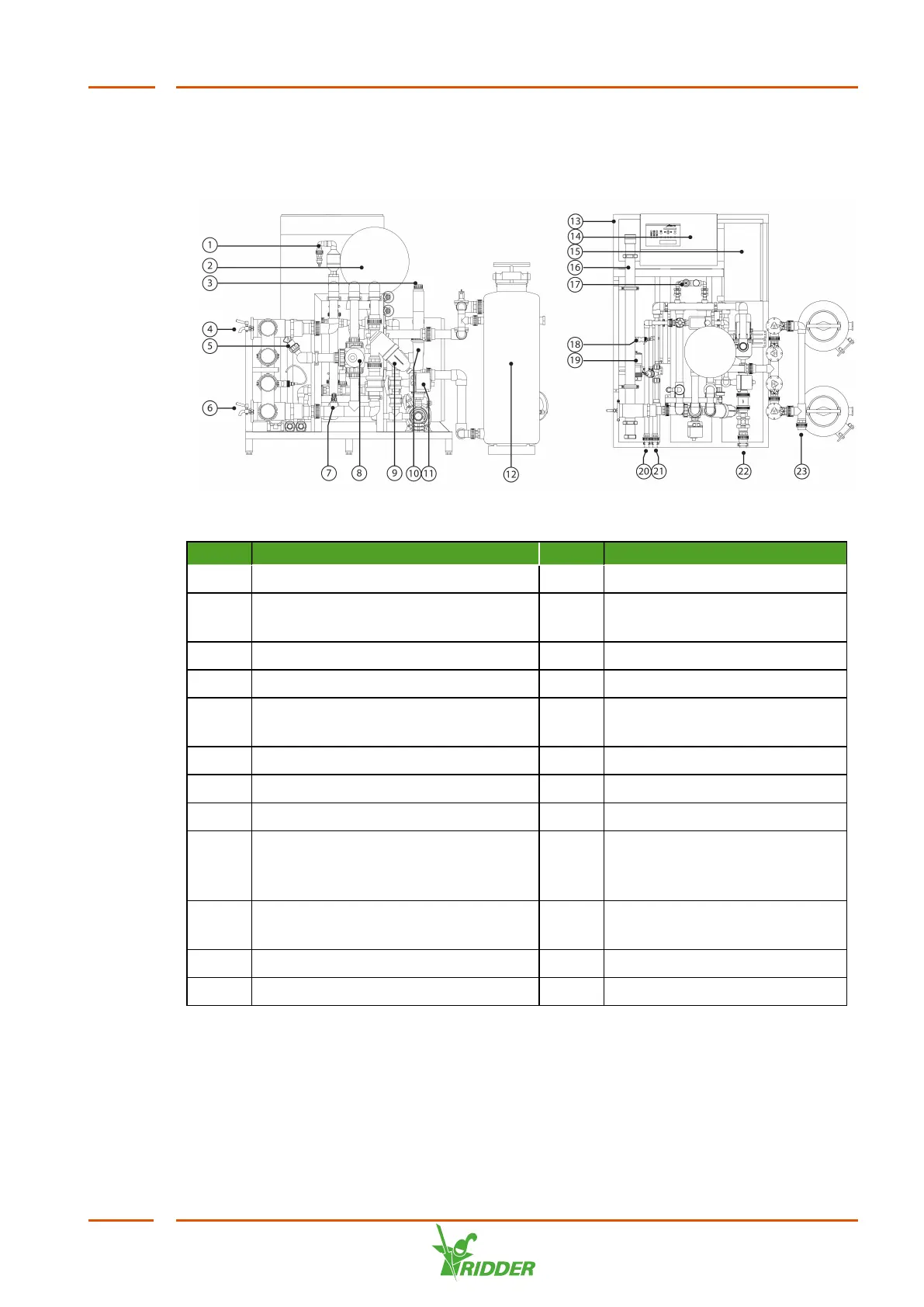

Figure 2-1: Basic configuration
No. Description No. Description
1 Air bleed valve 13 Frame
2 Pressure tank 14 Integrated controller (control
computer) and control panel
3 Location of EC sensor 15 Ballast cabinet
4 Disinfected water sampling tap 16 UV reactor
5 Litre counter 17 pH sensor and monitor pH
sensor
6 Drain water sampling tap 18 Radiation sensor
7 Acid dosing point 19 Acid pump
8 Bypass valve filter 20 Drain water return pipe
9 Screen filter, two valves and two
pressure gauges for the screen
filter
21 Disinfected water outlet
10 Sight glass and pressure gauge of
system pump
22 Suction pipe (inlet)
11 Acid circulation valve 23 Discharge pipe
12 Sand filter with valves
2.3 Description of I/O modules
The VitaLite-E and C uses I/O modules from the Compactima series. A Compactima
module is a network node suitable for connecting peripheral equipment. You mount
the modules in the main cabinet or an expansion cabinet by simply clicking them into
place. Wires fitted with ferrules can be inserted into a module without any tools.
VitaLite
9
